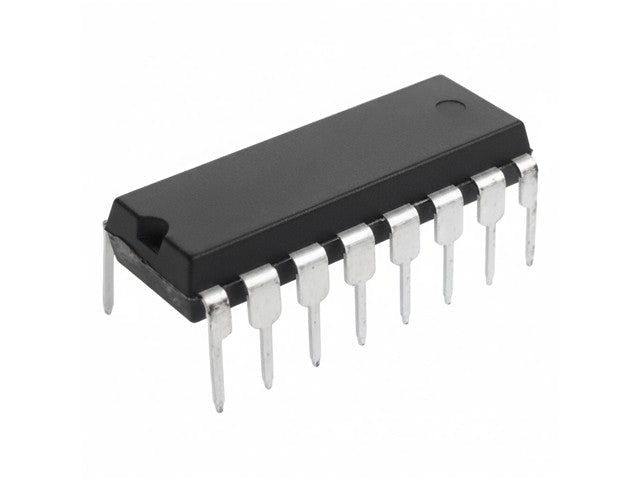

Product Details
Multivibrator Dual Monostable
Specifications
- Supply Voltage (Vcc): 4.75 V – 5.25 V
- Absolute Max Vcc: ~7 V
- Input Voltage Range: –0.5 V to Vcc
- Logic HIGH (VIH): ≥ 2.0 V
- Logic LOW (VIL): ≤ 0.8 V
- Output HIGH (VOH): ≥ 2.4 V
- Output LOW (VOL): ≤ 0.4 V
- Propagation Delay: ~20–40 ns typical
- Power Dissipation: ~50 mW typical
- Operating Temperature: 0 °C to 70 °C
Feature
- Dual independent one-shot circuits
- Non-retriggerable operation
- Adjustable pulse width via external RC
- Complementary outputs
- Noise-immune triggering
- TTL compatible
Typical Applications
- Pulse generation
- Timing delays
- Switch debouncing
- Pulse shaping
- Missing-pulse detection
- Digital timing control systems
Additional Information
| Device | Multivibrator |
