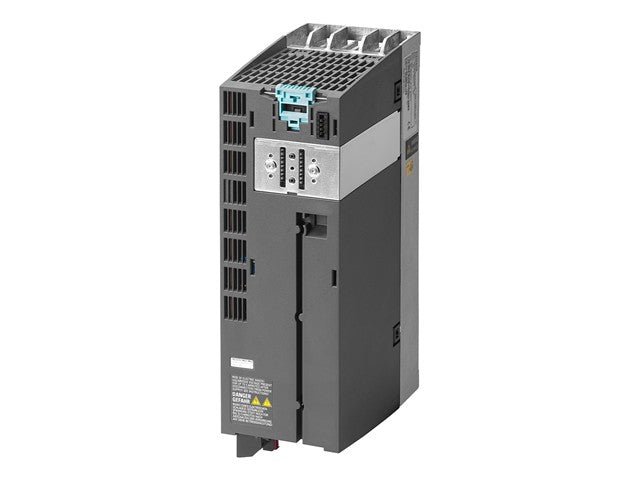

SINAMICS Power Module PM240-2 Unfiltered With Integrated Braking Chopper 380-480

SINAMICS Power Module

Specifications

Product designation: Power Module PM240-2, unfiltered with integrated braking chopper
Rated input voltage: 3-phase 380 … 480 V AC ±10% (47–63 Hz)
Power rating (low overload): 0.75 kW (150% for 3 s, 110% for 57 s, 100% for 240 s)
Power rating (high overload): 0.55 kW (200% for 3 s, 150% for 57 s, 100% for 240 s)
Rated output current (low overload): 2.3 A
Rated output current (high overload) : 1.7 A
Ambient temperature (low overload): –10 °C to +40 °C
Ambient temperature (high overload): –10 °C to +50 °C
Cooling method: Internal air cooling
Integrated braking chopper: Yes
Overload capability: 150% (LO) or 200% (HO) for 3 s
Dimensions (H × W × D): 196 mm × 73 mm × 165 mm
Degree of protection: IP20
Mounting type: Wall or control cabinet (FSA frame size)
Series: SINAMICS G120 (PM240-2)
Function: Modular power unit for G120 drives, used with Control Units (e.g., CU240E-2 or CU250S-2)
Typical applications: Pumps, fans, conveyors, and general automation drive systems

Device	Module
Type	SINAMICS \| Power \| Module
