Product Details

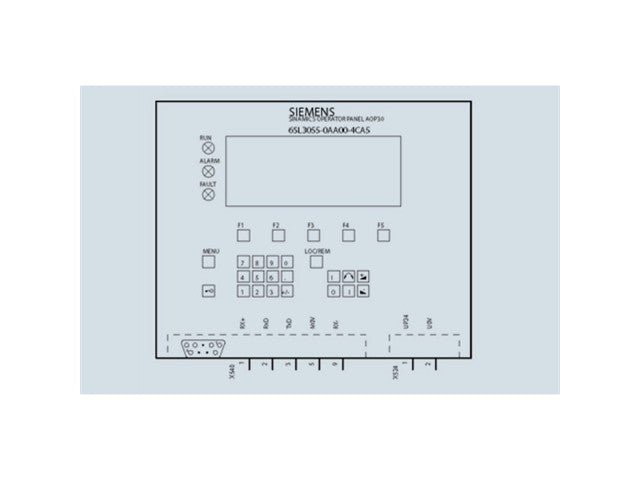

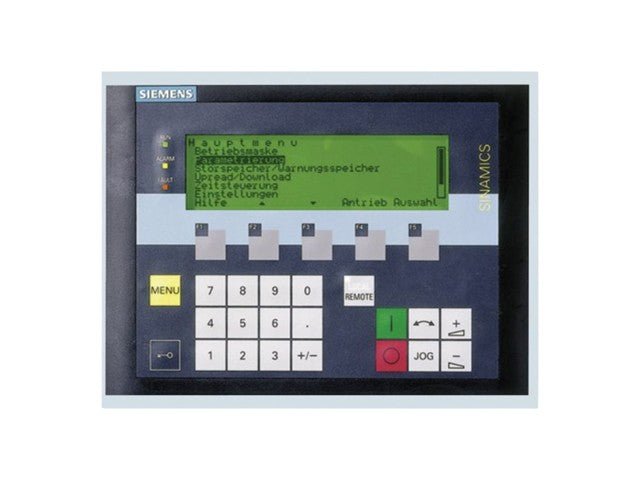

SINAMICS Operator Panel AOP30 Language-Neutral With Memory Expansion For Firmware V2.4 Or Higher
SINAMICS Operator Panel
Specifications
- Product Type: SINAMICS Advanced Operator Panel (AOP30)
- Part Number: 6SL3055-0AA00-4CA5
- Intended Use: Operator panel for SINAMICS drive systems
- Power Supply: 24 V DC (20.4 … 28.8 V DC)
- Current Consumption: < 100 mA (without backlight) / < 200 mA (with backlight)
- Display: Graphical LCD, green backlight, approx. 240 × 64 pixels
- Keypad: Membrane keypad (~26 function keys)
- Communication Interface: RS-232 (PPI protocol)
- Backup Battery: 3 V lithium battery (CR2032)
- Operating Temperature: 0 °C to +55 °C
- Storage Temperature: –25 °C to +70 °C
- Protection Rating: IP55 (front) / IP20 (rear)
- Mounting: Panel / cabinet door mounting
- Dimensions (W × H × D): 212 × 156 × 31 mm
- Weight (Approx.): 0.55 – 0.56 kg
- Compliance: CE, cULus, RoHS
Additional Information
| Device | Operator Panel |
| Type | SINAMICS | Operator | Panel |
