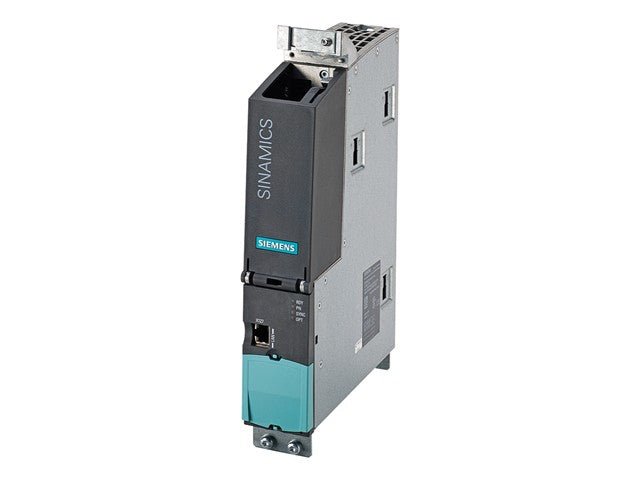

Sinamics Control Unit CU320-2 DP With Profibus Interface Without Compact Flash Card

Sinamics Control Unit

Specifications

Product Description: SINAMICS Control Unit CU320-2 DP with PROFIBUS interface, without CompactFlash card
Supply Voltage : 24 V DC (20.4 … 28.8 V)
Power Consumption / Power Loss: Maximum 24 W
Digital Inputs: 12 inputs, voltage range −3 … +30 V (Low: −3 … +5 V, High: +15 … +30 V)
Digital Outputs: 24 V DC, load current per output: max 500 mA
Signal Delay (Inputs/Outputs) : Inputs: L→H typ. 50 µs / H→L typ. 150 µs; Outputs: L→H typ. 150 µs / H→L typ. 75 µs
Interfaces: 4 × DRIVE-CLiQ, 1 × PROFIBUS, 1 × RS232
Installation Altitude: Up to 2,000 m above sea level
Ambient Temperature (Operation): 0 °C to +55 °C
Ambient Temperature (Storage): −25 °C to +55 °C
Ambient Temperature (Transport): −40 °C to +70 °C
Relative Humidity (Max): 95% at 40 °C (non-condensing)
Cooling Type: Internal fan cooling
Protection Class: IP20
Mounting Type: Panel or cabinet mounting
Dimensions (W × H × D): 50 mm × 300 mm × 226 mm
Net Weight: Approximately 2.2 kg
Communication Protocol: PROFIBUS DP
System Compatibility: SINAMICS S120 drive system
Manufacturer: Siemens AG
Country of Origin: Germany

Device	Control Unit
Type	Sinamics \| Control \| Unit
