Product Details

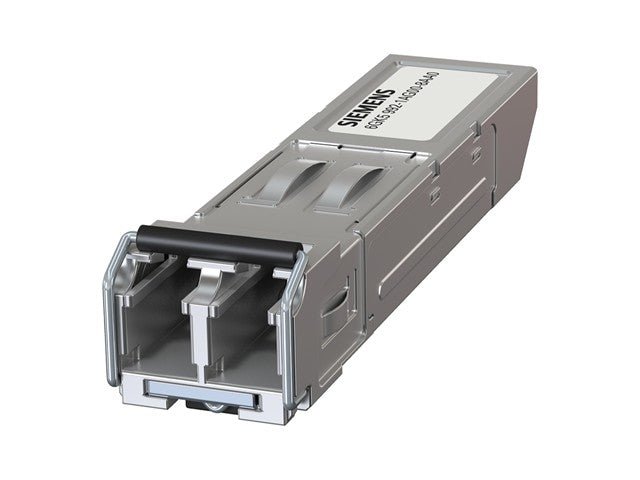

SCALANCE X Accessory; Plug-in Transceiver SFP992-1+; 1x 1000 Mbit/s LC Port
SCALANCE X Accessory; Plug-in Transceiver
Specifications
- Product Number: 6GK5206-2GS00-2TC2
- Brand: Siemens
- Product Family: SCALANCE XC-200
- Model: XC206-2SFP G (E/IP)
- Product Type: Managed Layer-2 Industrial Ethernet Switch
Network & Ports
- RJ45 Ports:
- 6 × 10/100/1000 Mbit/s Gigabit RJ45
- Fiber Ports:
- 2 × 1000 Mbit/s SFP slots
- Console Port:
- 1 × Console port
- Protocols Supported:
- PROFINET IO
- EtherNet/IP
- VLAN
- RSTP redundancy
- Time Synchronization:
- IEEE 1588v2 PTP
- Configuration Storage:
- C-PLUG slot supported
Power & Electrical
- Supply Voltage:
- 24 V DC
- Power Supply:
- Redundant power supply supported
- Diagnostics:
- Integrated LED diagnostics
- Security Certification:
- IEC 62443-4-2 certified
Mechanical & Environmental
- Mounting Type:
- DIN rail
- S7 mounting rail
- Wall mounting
- Degree of Protection:
- IP20
- Operating Temperature Range:
- −40 °C to +70 °C
- Dimensions (Approx.):
- 75 × 73 × 125 mm
- Net Weight:
- Approx. 0.52 kg
Functional Features
- Primary Role:
- Industrial Ethernet switching with copper and fiber connectivity
- Typical Applications:
- PLC and automation networks
- Industrial backbone connections
- High-reliability machine networks
- Default Configuration:
- EtherNet/IP enabled by default
Compliance & Lifecycle
- Product Lifecycle Status:
- Active Product (PM300)
- Export Control Classification:
- ECCN: N
- RoHS Compliance:
- Yes
- Country of Origin:
- Germany
- Commodity Code:
- 85176200
Downloads
Additional Information
| Device | Transceiver |
| Type | SCALANCE | X | Accessory | Plug-in | Transceiver |
