Product Details

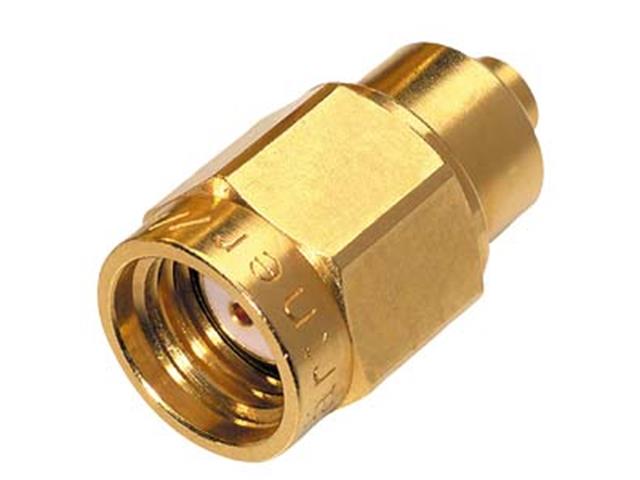

Siemens R-SMA Male Termination Impedance TI795-1R 2.4 and 5 GHz, IP65, 0...6 GHz
R-SMA Male Termination Impedance
Specifications
- Product Number: 6GK5795-1TR10-0AA6
- Brand: Siemens
- Product Family: SIMATIC NET IWLAN Cabling Technology
- Product Type: IWLAN Terminating Resistor (Antenna Termination)
Electrical Specifications
- Connector Type:
- R-SMA male
- Number of Electrical Connections:
- 1
- Frequency Range:
- 0 to 6 GHz
- Operating Bands:
- 2.4 GHz
- 5 GHz
- Impedance:
- 50 Ω
- Return Loss (Minimum):
- 25 dB
Mechanical Specifications
- Diameter:
- 9 mm
- Length:
- 15 mm
- Net Weight:
- Approx. 5 g
- Material:
- Brass, gold-plated
Environmental Specifications
- Degree of Protection:
- IP65
- Operating Temperature:
- −40 °C to +70 °C
- Storage Temperature:
- −40 °C to +70 °C
- Transport Temperature:
- −40 °C to +70 °C
Functional Description
- Function:
- Terminates unused antenna ports in IWLAN systems
- Typical Use:
- SCALANCE IWLAN access points
- Industrial wireless antenna installations
- Packaging:
- 1 pack = 3 units
Compliance & Lifecycle
- Product Lifecycle Status:
- Active Product (PM300)
- Commodity Code:
- 85389091
- Country of Origin:
- Germany
Downloads
Additional Information
| Device | BNC |
| Type | TI795-1R 2.4 | 5 GHz | IP65 | 0...6 GHz |
