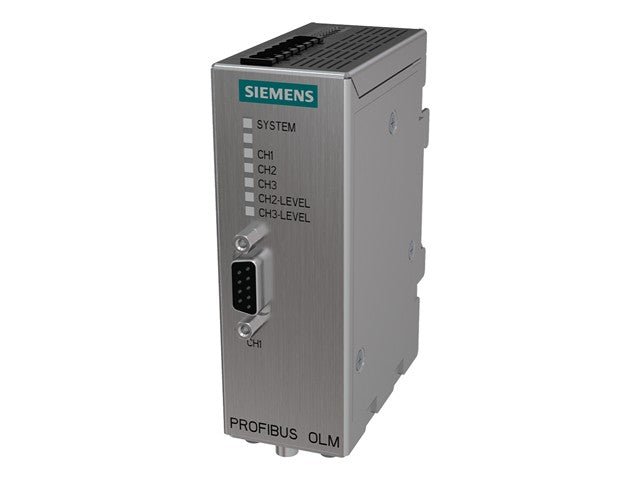

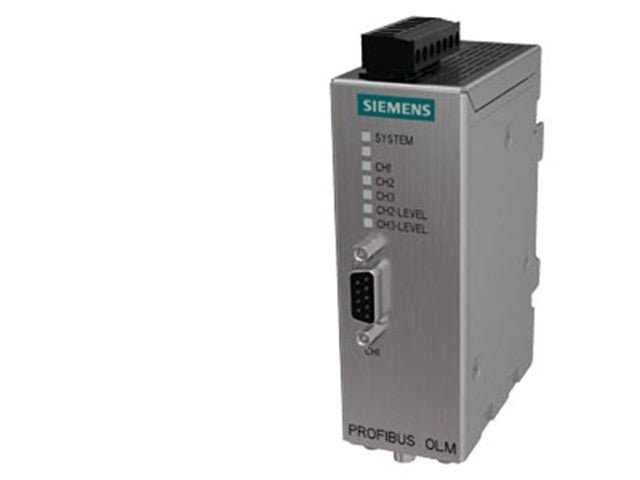

PROFIBUS OLM/G11 V4.0 Optical Link Module With 1 Rs 485 And 1 Glass Fiber Optic Cable Interface (2 BFOC Sockets), With Signaling Contact And Test Port
PROFIBUS OLM/G11 V4.0 Optical Link Module
Specifications
- Product Type: PROFIBUS OLM/G11 V4.0 Optical Link Module with RS-485 & glass fiber optic interface
- Transfer Rates: PROFIBUS: 9.6 kbit/s to 12 Mbit/s, PROFIBUS PA: 45.45 kbit/s
- Electrical Interface: 1 × RS-485 (9-pin Sub-D)
- Optical Interface: 1 × Fiber optic port (2 × BFOC sockets, multimode)
- Signal Contact: 24 V DC rated, max 0.1 A
- Power Supply: 24 V DC (18.8 to 28.8 V)
- Current Consumption: Max 0.2 A
- Wavelength: 860 nm (multimode fiber)
- Max Fiber Length: Up to 3 km (50/125 µm or 62.5/125 µm)
- Optical Sensitivity: –28 dB
- Launch Power: –16 dB / –13 dB
- Max Optical Attenuation: 50/125 µm: 10 dB, 62.5/125 µm: 12 dB
- Propagation Delay: 6.5 bit
- Operating Temperature: 0 to +60 °C
- Storage Temperature: –40 to +70 °C
- Humidity: Max 95% (non-condensing)
- Protection Class: IP40
- Dimensions (W × H × D): 39.5 × 112 × 74.5 mm
- Weight : Approx. 340 g
- Mounting: DIN rail or wall mounting
- Redundancy Support: Ring redundancy supported
- Approvals: UL 60950-1, CSA C22.2 No. 60950-1, EN 61000-6-2 / EN 61000-6-4
