• 6ES7531 - 7NF00 - 0AB0 - Industrial Automation - 4047623406549
1 1

6ES7531-7NF00-0AB0

6ES7531-7NF00-0AB0

Dhs. 20,524.00
Dhs. 20,524.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Product Details

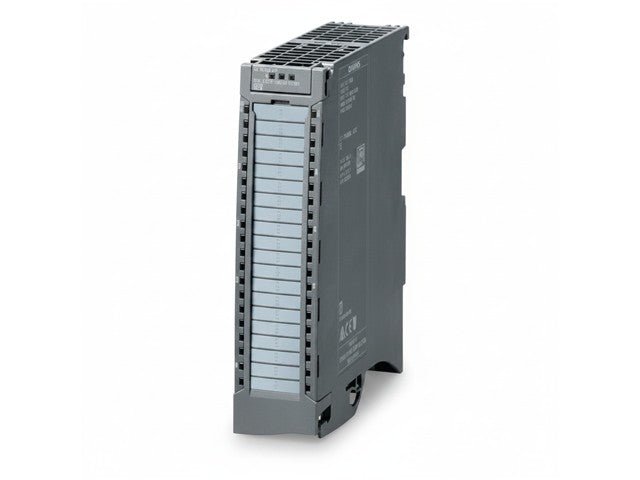

SIMATIC S7-1500 Analog Input Module AI 8xU/I HF, up to 24 Bit Resolution, Accuracy 0.1%, 8 Channels in groups of 1

SIMATIC S7-1500 Analog Input Module

Feature(s)


  • Category: Industrial Automation → SIMATIC S7-1500 Analog Input Module
  • Manufacturer: Siemens
  • Part Number: 6ES7531-7NF00-0AB0
  • Product Family: SM 531 Analog Input Modules
  • Product Status: Active Product (PM300)
  • Product Description: SIMATIC S7-1500 AI 8xU/I HF Analog Input Module
  • Module Type: High-Feature (HF) Analog Input Module
  • Number of Analog Inputs: 8
  • Input Types:
    • Voltage Inputs
    • Current Inputs
  • Resolution: Up to 24-bit
  • Accuracy: 0.1%
  • Channel Configuration: 8 channels in groups of 1
  • Common Mode Voltage: 30 VAC / 60 VDC
  • Supply Voltage: 24 VDC
  • Operating Voltage Range: 19.2 VDC to 28.8 VDC
  • Current Consumption: 50 mA max. @ 24 VDC
  • Power Loss: Typical 1.9 W
  • Supported Voltage Ranges:
    • ±10 V
    • ±5 V
    • ±2.5 V
    • 1 V to 5 V
  • Diagnostics: Yes
  • Hardware Interrupts: Yes
  • Measured Value Scaling: Yes
  • Measuring Range Adjustment: Yes
  • Calibration in RUN: Yes
  • Shielded Cable Length: Up to 800 m
  • Integration Time: Parameterizable
  • Mounting Type: DIN Rail (S7-1500 Rack)
  • Dimensions: 35 × 147 × 129 mm
  • Weight:
    • Approx. 280 g
    • Net Weight: 0.402 kg (shipping/catalog value)
  • Included:
    • Infeed element
    • Shield bracket
    • Shield terminal
  • Front Connector: Ordered separately (screw terminal or push-in type)




Downloads

Additional Information

Device Input Module
Type SIMATIC | S7-1500 | Analog | Input | Module
