Product Details

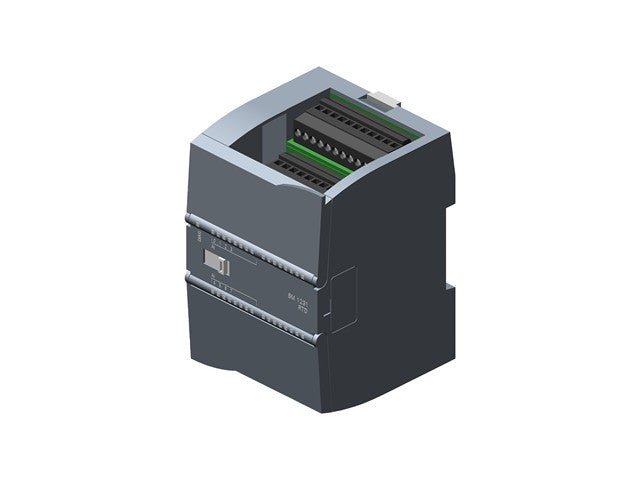

SIMATIC S7-1200, Analog Input, SM 1231 RTD, 8xAI RTD Module
SIMATIC S7-1200
Specifications
- Product: SIMATIC S7-1200 SM1231 Analog Input Module
- Order Number: 6ES7231-5PF32-0XB0
- Inputs: 8 analog inputs
- Input Types: Voltage (±10 V, 0–10 V, 1–5 V) / Current (0/4–20 mA)
- Resolution: 14 bits
- Accuracy: ±0.5 %
- Conversion Time: ~25 ms per channel
- Diagnostics: Wire break, overflow/underflow, parameter errors
- Power Supply: From backplane bus
- Isolation: Channels isolated from backplane
- Dimensions (W x H x D): 45 × 100 × 75 mm
- Weight : ~200 g
- Operating Temp.: -20 °C … +60 °C
- Protection: IP20
Downloads
Additional Information
| Device | Module |
| Type | Analog Input, SM 1231 RTD, 8xAI RTD Module |
