Product Details

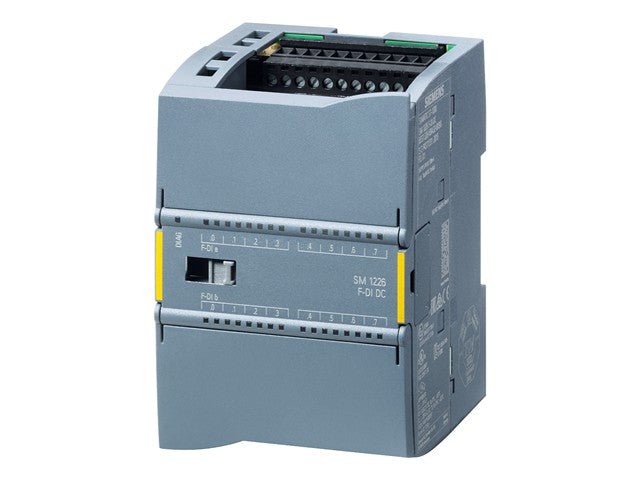

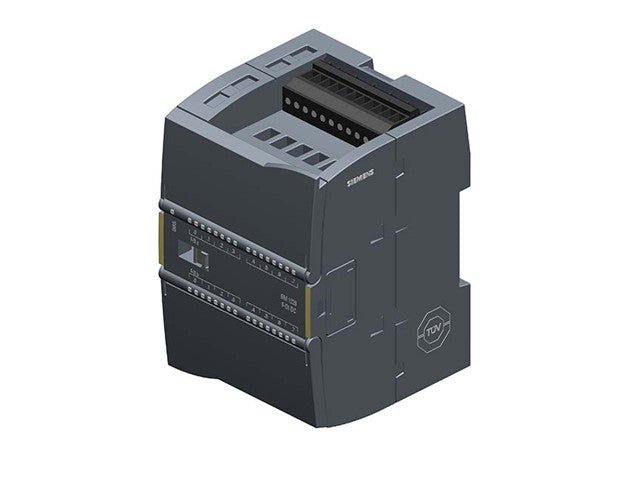

SIMATIC S7-1200, Digital Input SM 1226, F-DI 16X 24 V DC, PROFIsafe.
SIMATIC S7-1200, Digital Input
Specifications
- Category: Industrial Automation → SIMATIC S7-1200 Safety I/O Module
- Manufacturer: Siemens
- Part Number: 6ES7226-6BA32-0XB0
- Product Family: SM 1226 Fail-Safe Digital Input Module
- Product Status: Active Product (PM300)
- Product Description: SIMATIC S7-1200, SM 1226, F-DI 16 × 24 VDC, PROFIsafe
- Module Type: Fail-Safe Digital Input Module (F-DI)
- Number of Inputs: 16 Digital Inputs (24 VDC)
- Safety Protocol: PROFIsafe
- Supply Voltage: 24 VDC
- Operating Voltage Range: 20.4 VDC to 28.8 VDC
- Backplane Current Consumption: 155 mA max.
- Power Dissipation: Typical 7 W
- Input Voltage (Logic 0): -30 VDC to +5 VDC
- Input Voltage (Logic 1): 15 VDC to 30 VDC
- Input Current (Logic 1): Typical 5 mA
- Input Delay: Parameterizable (0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms, 12.8 ms)
- Maximum Cable Length: 200 m (shielded or unshielded depending on filter settings)
- Safety Rating:
- Up to PL e according to ISO 13849-1
- Up to SIL 3 according to IEC 61508
- Protection Rating: IP20
- Mounting Type: DIN Rail
- Housing Material: Plastic
- Operating Temperature: 0°C to 55°C
- Storage Temperature: -40°C to 70°C

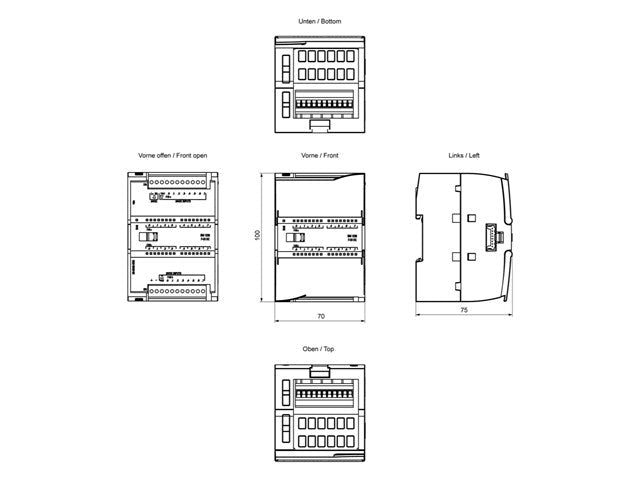

- Dimensions:
- Width: 70 mm
- Height: 100 mm
- Depth: 75 mm
- Weight: Approximately 0.25 kg (0.256 kg)
- EAN: 4025515082897
- Country of Origin: China
