Product Details

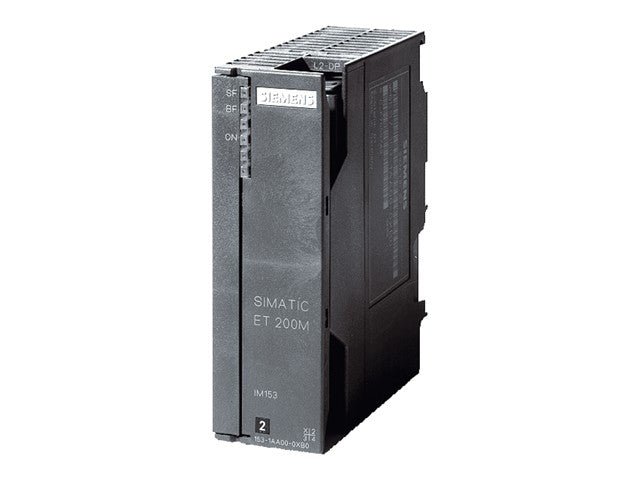

SIMATIC DP, Connection DP/PA Link And ET200M IM153-2 HF For Extended Temperature Range For Max. 12 S7-300 Modules With Redundancy Capability, Timestamping Suitable For Isochronous Mode New Features
SIMATIC DP, Connection DP/PA Link
Specifications
- Category: Industrial Automation → Distributed I/O Interface Module
- Manufacturer: Siemens
- Part Number: 6ES7153-2BA82-0XB0
- Product Family: SIMATIC DP ET 200M IM153-2 HF
- Module Type: PROFIBUS DP Interface Module
- Communication Interface: PROFIBUS DP (RS-485)
- Maximum Data Rate: 12 Mbit/s
- Supply Voltage: 24 VDC
- Distributed I/O System: ET 200M
- Compatible I/O Modules: Up to 12 S7-300 modules per station
- Features:
- Redundancy capable
- Time stamping support
- Isochronous mode support
- HART secondary variable support
- Slave Initiative for Drive ES and Switch ES
- Support for 64-channel I/O modules
- Up to 32 timestamped signals per slot
- Operating Temperature: Extended temperature range (outdoor version)
- Dimensions: 40 × 125 × 117 mm
- Weight: 360 g
- Mounting Type: DIN Rail
- Country of Origin: Germany
- Product Status: Discontinued / Product Cancellation since October 2016
- EAN: 4025515075738
Downloads
Additional Information
| Device | Module |
| Type | SIMATIC | DP | Connection | DP/PA | Link |
