Product Details
SIMATIC DP, Electronics Module ET200S: 2AI High Speed I-2-Wire 0-20 mA; 4.. 20mA, 15 bit, 15 MM Width, For 2-Wire Transducer
SIMATIC DP, Electronics Module
Specifications
- Product Name / Type: SIMATIC DP, Electronics Module, ET200S – 2 AI High-Speed I-2-Wire
- Article Number: 6ES7134-4GB52-0AB0
- Module Function: 2 analog current inputs (High Speed) for 2-wire transmitters
- Input Signal Range: 0–20 mA, 4–20 mA
- Resolution: 15-bit (16-bit including sign)
- Cycle Time: Module: 0.10 ms; all channels max: 0.25 ms
- Load Resistance: ≤ 600 Ω
- Accuracy: ±0.3 % of full scale (typical)
- Supply Voltage: 24 V DC
- Input Current: < 225 mA from L+; < 10 mA from backplane
- Power Loss (typ.): ~2.5 W
- Diagnostic Indicators: SF (group fault) LED
- Cable Length (shielded): ≤ 200 m
- Protection: Short-circuit & reverse polarity protection
- Address Space: Max. 4 bytes

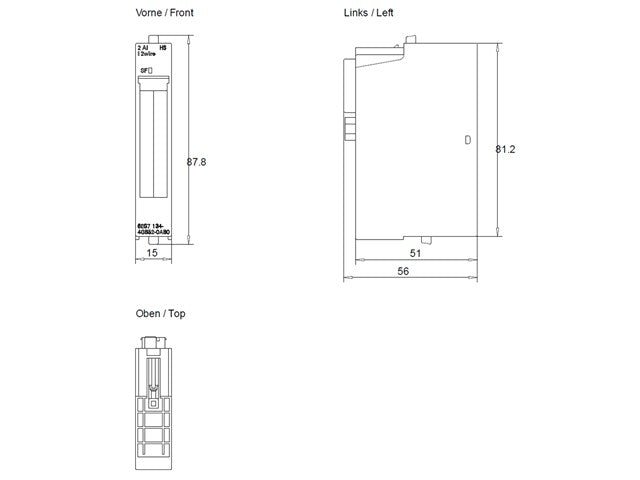

- Dimensions (W×H×D): ~15 × 81 × 52 mm
- Weight: ~0.04 kg
- Mounting: On ET200S I/O base modules
- Product Lifecycle: Discontinued / spare part (since 01.10.2023)
Downloads
Additional Information
| Device | Electronics Module |
| Type | SIMATIC | DP | Electronics | Module |
