SITOP UPS1600 10 A USB Uninterruptible Power Supply With USB interface Input: 24 V DC output: 24 V DC/10 A

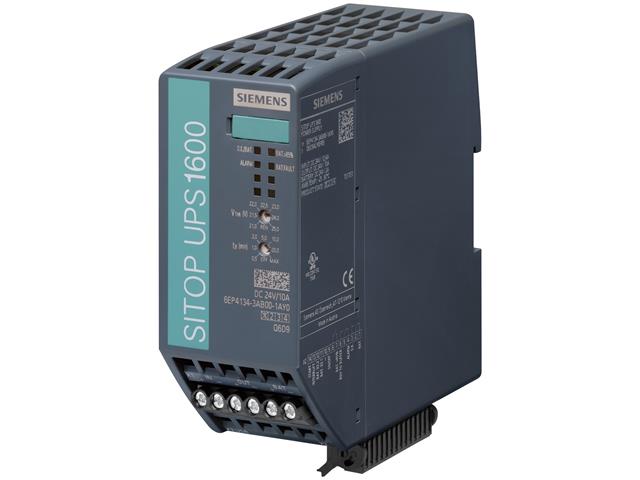

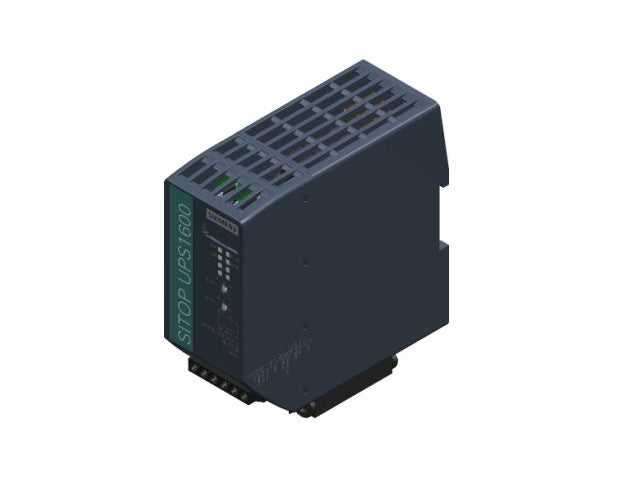

SITOP UPS1600 10 A USB Uninterruptible Power Supply
Specifications
- Manufacturer: Siemens
- Product family: SITOP UPS1600
- Type: DC UPS (Uninterruptible Power Supply) module with USB interface
- Product description:
- SITOP UPS1600 10 A USB uninterruptible power supply module
- Designed for uninterrupted 24 V DC backup systems
- Input voltage:
- 24 V DC nominal
- Operating range: 21–29 V DC
- Output voltage:
- 24 V DC nominal
- Buffer mode range: approx. 18.5–28.5 V DC
- Output current:
- 10 A nominal
- Peak current up to 30 A
- Output power:
- 240 W typical
- Charging current:
- Adjustable from 0.1 A to 3 A
- Buffer switch threshold:
- Adjustable: 21–25 V DC
- Configurable via software or rotary switch
- Buffering time settings:
- 0.5 min
- 1 min
- 2 min
- 5 min
- 10 min
- 20 min
- Maximum buffering mode
- Efficiency:
- Up to 97.7%
- Communication interface:
- USB interface for diagnostics and monitoring
- Protection features:
- Short-circuit protection
- Reverse polarity protection
- Overload protection
- Battery monitoring and protection
- Indicators & diagnostics:
- Green LED: System OK
- Yellow LED: Battery/buffer operation
- Red LED: Alarm/fault indication
- Relay signaling outputs
- Mounting type:
- DIN rail mounting (EN 60715)
- Dimensions (W × H × D):
- Approx. 50 × 125 × 125 mm
- Weight:
- Approx. 0.4 kg
- Protection class:
- IP20
- Operating temperature:
- -25 °C to +70 °C
- Cooling method:
- Natural convection (fanless)
- Connection type:
- Screw terminals
- Standards & certifications:
- CE
- cULus
- CB
- IECEx
- EN 55022 Class B
- EN 61000-6-2
- Applications:
- PLC backup systems
- Industrial automation
- HMI backup systems
- Critical 24 V DC systems
- Control cabinets
- Additional notes:
- Requires compatible SITOP battery modules
- Supports SITOP Manager software and USB diagnostics
