Product Details

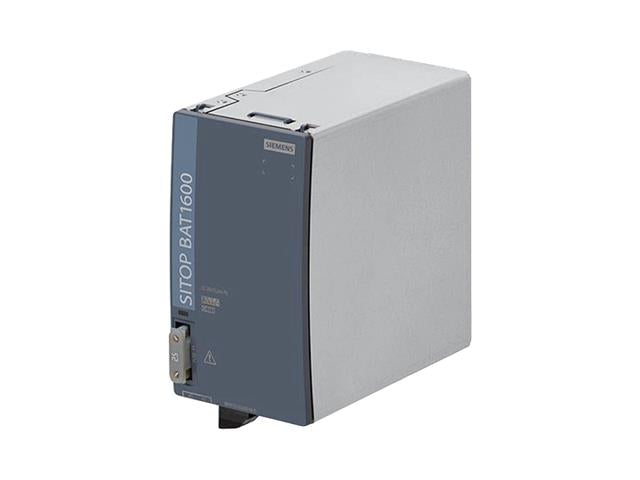

SITOP BAT1600 EX 24 V DC 3.2 Ah PB Battery Module With Maintenance- free Closed Lead-acid Battery For SITOP UPS1600
Battery Module
Specifications
- Manufacturer: Siemens
- Product family: SITOP BAT1600
- Type: Battery module for DC UPS systems
- Product description:
- SITOP BAT1600 EX battery module with maintenance-free sealed lead-acid batteries for SITOP UPS1600 systems
- Nominal voltage:
- 24 V DC
- Battery capacity:
- 3.2 Ah
- Battery type:
- Maintenance-free sealed lead-acid (Pb) battery
- Compatible systems:
- SITOP UPS1600 DC UPS modules
- Rated output current:
- Up to 20 A support capability
- Peak current:
- Up to 60 A for short duration (approx. 30 ms)
- Mounting type:
- DIN rail mounting
- Wall mounting possible
- Dimensions (W × H × D):
- Approx. 89 × 156 × 169 mm
- Weight:
- Approx. 3.8–4.3 kg
- Protection class:
- IP20
- Operating temperature:
- -15 °C to +50 °C
- Storage temperature:
- -20 °C to +50 °C
- Cooling method:
- Passive / natural cooling
- Connection type:
- Screw terminals
- Indicators:
- Green LED battery status indication
- Diagnostic signaling support
- Protection features:
- Battery fuse protection
- Overcharge protection
- Valve-regulated battery design
- Certifications & approvals:
- CE
- UL / cURus
- IECEx
- CSA
- GL / ABS marine approvals
- Applications:
- Industrial UPS backup systems
- PLC backup power
- Control cabinets
- Critical 24 V DC systems
- Hazardous / industrial environments
- Additional notes:
- Designed for uninterrupted 24 V DC backup operation
- Requires compatible SITOP UPS1600 module
