Product Details

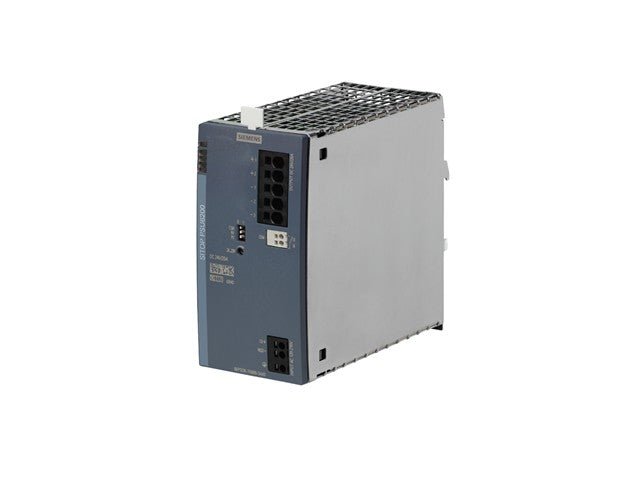

SITOP PSU6200 24 V/20 A Stabilized Power Supply Input: 120 - 240 V AC (110 - 240 V DC) Output: 24 V DC/20 A With Diagnostic Interface
SITOP Stabilized Power Supply
Specifications
- Input: 120–240 V AC / 110–240 V DC; wide-range; 25 ms buffering
- Output: 24 V DC at 20 A (up to 24 A); adjustable 24–28 V; 480 W
- Protection: Short-circuit hiccup, overload shutdown
- Diagnostics: Green LED and NO contact
- Parallel Operation: Up to 2 units, DIP-switch-selectable
- Efficiency: ~95.5%; power loss ~25 W at load, ≤2.6 W idle
- Environment: –25 °C to +70 °C (derating above 60 °C)
- Connection: Push-in terminals for input/output/auxiliary
Downloads
Additional Information
| Device | Power Supply |
| Type | SITOP | Stabilized | Power Supply |
