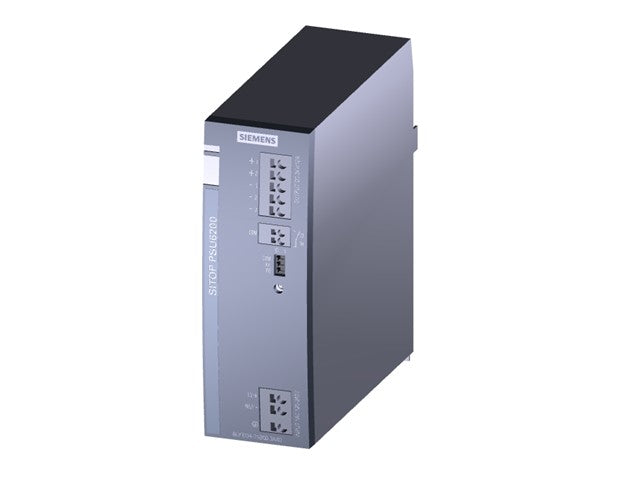

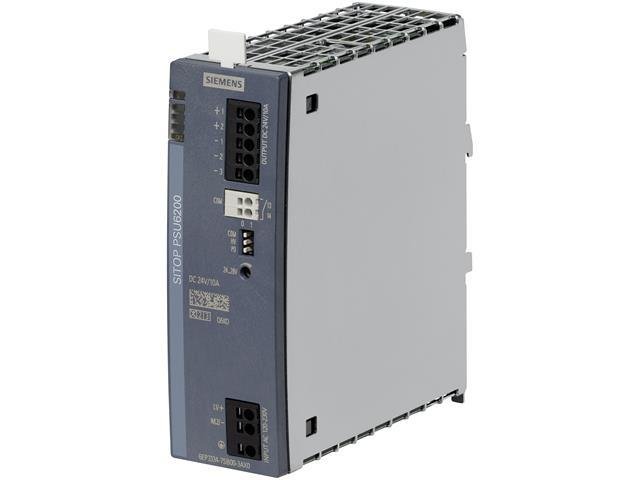

SITOP PSU6200 24 V/10 A Stabilized Power Supply Input: 120 - 230 V AC (110 - 240 V DC)
SITOP PSU6200 24 V/10 A Stabilized Power Supply
Specifications
- Manufacturer: Siemens
- Product family: SITOP PSU6200
- Type: Industrial DIN rail switching power supply
- Input voltage:
- 120–240 V AC
- 110–240 V DC
- Wide range: 85–264 V AC / 85–275 V DC
- Input frequency:
- 47–63 Hz
- Output voltage:
- 24 V DC
- Adjustable output
- Output current:
- 10 A
- Output power:
- 240 W
- Efficiency:
- Up to 92.8%
- Buffering time:
- Minimum 45 ms at full load
- Overload capability:
- 150% extra power for short duration
- Residual ripple:
- Typical: 20 mV
- Maximum: 30 mV
- Mounting type:
- DIN rail mount
- Dimensions (W × H × D):
- Approx. 45 × 135 × 125 mm
- Weight:
- Approx. 0.9 kg
- Protection features:
- Short-circuit protection
- Overload protection
- Overvoltage protection
- Thermal protection
- Operating temperature:
- -25 °C to +70 °C
- Cooling method:
- Natural convection (fanless)
- Protection class:
- IP20
- Indicators & diagnostics:
- Green LED “24 V OK”
- Diagnostic interface
- Electronic signaling contact
- Parallel operation:
- Supported (up to 2 units)
- Connection type:
- Push-in / terminal connections
- Certifications & standards:
- CE
- UL
- CSA
- EN 55022 Class B
- EN 61000-6-2
- Applications:
- PLC systems
- Industrial automation
- Control cabinets
- Machine building
- 24 V DC industrial power systems
