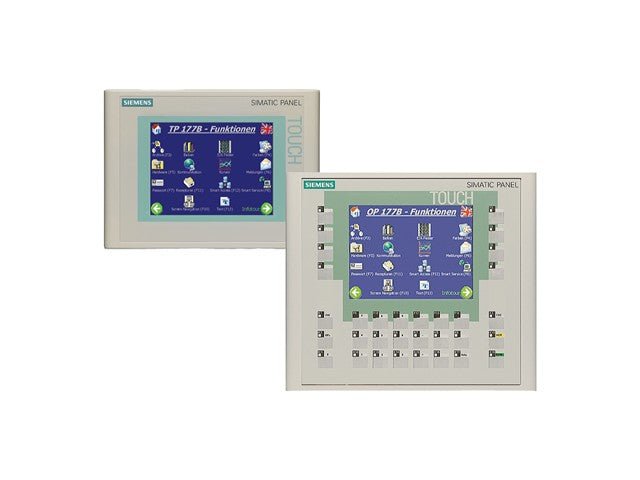

SIMATIC TP 177B 6" PN/DP STN 256 Color Display MPI/PROFIBUS DP Protocol RS485/RS422/USB Interface
SIMATIC Color Display
Specifications
- Product Name: SIMATIC TP177B Operator Panel
- Order Number: 6AV6642-0BA01-1AX1
- Product Type: Industrial Operator Panel / HMI
- Display Size: 5.7″ (approx. 145 mm)
- Display Type: STN color display
- Color Depth: 256 colors
- Resolution: 320 × 240 pixels
- Backlight MTBF: Approx. 50,000 hours at 25 °C
- Touchscreen: Analog resistive touch
- Control Elements: Touchscreen, system keys, numeric & alphanumeric input
- Processor: ARM CPU (approx. 200 MHz)
- User Memory: Approx. 2,048 KB for user data
- Operating System: Embedded (Siemens HMI firmware)
- Power Supply: 24 V DC (nominal), 20.4 – 28.8 V DC
- Current Consumption: Approx. 0.24 A
- Communication Interfaces: MPI / PROFIBUS-DP, RS-422, RS-485
- Ethernet Interface: 10/100 Mbit/s Ethernet (RJ45)
- USB Ports: USB for mouse/keyboard/barcode reader
- Printer Interface: Yes
- Memory Card Slot: MMC card slot
- Mounting: Vertical panel mounting (inclination ≤ 35° without external ventilation)
- Front Protection Rating: IP65
- Rear Protection Rating: IP20
- Operating Temperature: 0 °C to +50 °C
- Storage Temperature: −20 °C to +60 °C
- Humidity: Up to 90% non-condensing
- Dimensions (approx.): 212 × 156 × 44 mm
- Weight (approx.): ~0.8–1.1 kg
- Typical Applications: Operator control & monitoring for PLC/automation systems
