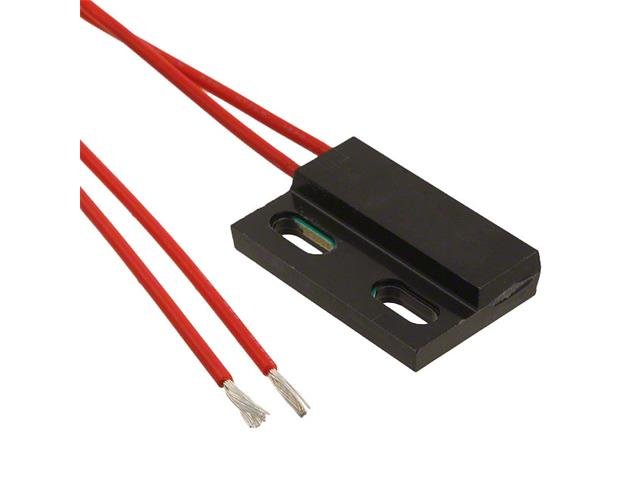

Reed Switch n/o Wide Temp/Hi Voltage 500mA @ 300VDC Max. with Mounting Flange and Flyleads
High Temperature Flange Mount Reed Switch
Specifications
| Product Attribute |
Attribute Value |
| Product Category: |
Proximity Sensors |
|
Magnetic |
|
17.1 mm |
|
Screw |
|
SPST-NO |
| Barrel Size: |
28.57 mm x 19.05 mm x 6.35 mm |
| Height: |
6.35 mm |
| Length: |
28.57 mm |
| Maximum Operating Temperature: |
+ 105 C |
| Minimum Operating Temperature: |
- 20 C |
| Operating Supply Current: |
400 mA |
| Operating Supply Voltage: |
265 VAC, 300 VDC |
| Subcategory: |
Sensors |
| Width: |
19.05 mm |
| Unit Weight: |
11.576 g |
Downloads
Additional Information
| Device |
Switch |
| Type |
High Temperature | Flange Mount | Reed |
