Product Details

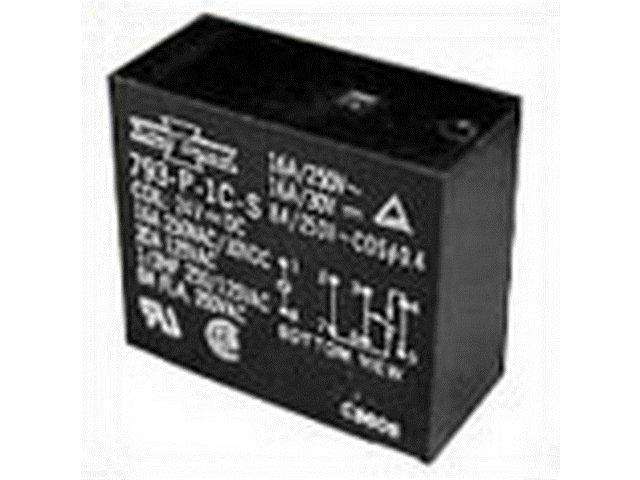

Medium - Hi Power Relay • Form 1C • VCoil= 48V DC • IMax Switching= 16A • RCoil= 3.3kΩ • PCB • Vertical Case
Overview
Features
Specification
- 8mm Creepage Distance
| Model | 4061 DC48V MOD |
| Contact Form | Form 1C |
| Size Category | Std Size |
| Size | 29x14x26mm |
| Termination | PCB |
| Coil Rated Voltage | 48V |
| AC/DC Voltage | DC |
| Max. Switching Current | 16A |
| Electrical Rating | 16A/30VDC/250VAC |
| Coil Power | 700mW Power |
| Coil Resistance | 3.3kΩ |
| Isolation Voltage | 4KV |
| Approvals | UL/CSA/TUV |
| Contact Material | Ag |
| No. of Pins | 8 Pin(s) |
| No. of Poles | 1 Pole(s) |
