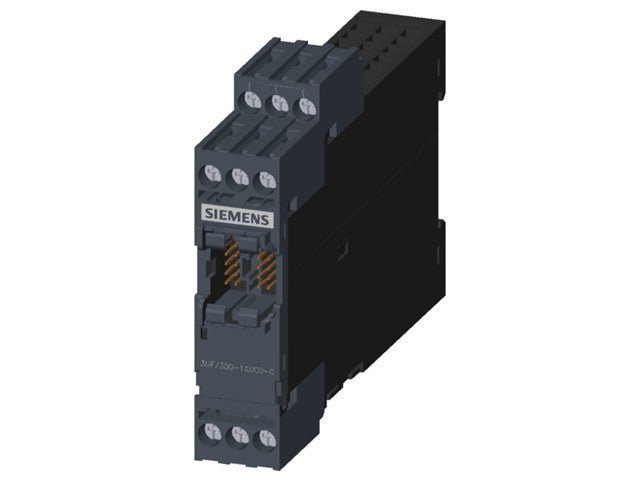

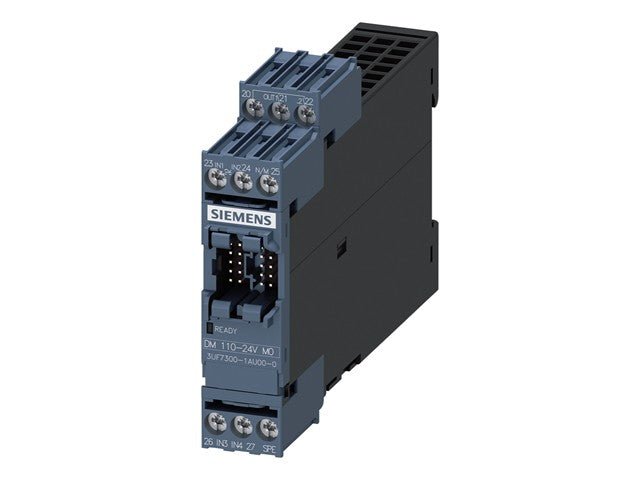

Simocode Digital Module, 4 Inputs And 2 Relay Outputs, Input Voltage 110-240 V Ac/dc Relay Outputs Monostable, Max. 2 Digital Modules
Simocode Digital Module
Specifications
- Product Name: SIMOCODE pro Digital Module
- Model Number: 3UF7300-1AU00-0
- Function: Digital extension module for SIMOCODE pro V basic unit
- Module Type: Digital I/O extension
- Digital Inputs: 4 × digital inputs
- Relay Outputs: 2 × relay outputs (monostable)
- Input Supply Voltage: AC/DC 110–240 V
- Consumed Active Power: Approx. 0.7 W
- Insulation Voltage: 300 V (pollution degree 3)
- Surge Voltage Resistance: 4 000 V
- Protection Class: IP20
- Shock Resistance: 15 g / 11 ms (IEC 60068-2-27)
- Vibration Resistance: 1–6 Hz: 15 mm; 6–500 Hz: 2 g (IEC 60068-2-6)
- Switching Capacity (AC-15, NO): 24 V: 6 A, 120 V: 6 A, 230 V: 3 A
- Switching Capacity (DC-13, NO): 24 V: 2 A, 60 V: 0.55 A, 125 V: 0.25 A
- Continuous Current (NO contacts): 6 A @ 50 °C, 5 A @ 60 °C
- Mechanical Life (typ.): ~10 000 000 cycles
- Electrical Endurance (typ.): ~100 000 cycles
- Max Digital Modules per Base Unit: 2
- Weight: ~0.156–0.157 kg
- Mounting/Connection: Screw terminals
- Product Family: SIMOCODE pro 3UF7 motor management & control devices
- Country of Origin: Germany
