Product Details

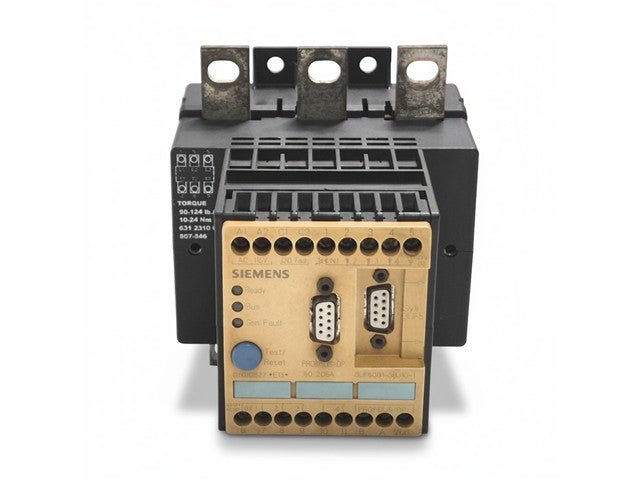

SIMOCODE DP Basic Unit PROFIBUS DP Interface 1.5 Mbaud, RS485 4I/4O
SIMOCODE DP Basic Unit
Specifications
- Product type: SIMOCODE DP basic unit
- Communication interface: PROFIBUS-DP
- Transmission rate: 1.5 Mbaud
- Communication standard: RS485
- Control supply voltage: 115 V AC, 50/60 Hz
- Adjustable motor current range: 50 to 205 A
- Number of digital inputs: 4 freely parameterizable inputs
- Number of digital outputs: 4 freely parameterizable outputs
- Output type: Monostable
- Ground fault monitoring:
- Input for summation current transformer
- Earth-fault detection supported
- Main circuit connection: Busbar connection
- Auxiliary/control connection: Screw-type terminals
- Mounting type:
- Direct mounting
- Stand-alone installation
- Protection class: IP00
- Dimensions:
- Width: 120 mm
- Height: 145 mm
- Depth: 155 mm
- Operating temperature: -25 °C to +60 °C
- Operating frequency: 50 to 60 Hz
- Rated operating voltage: 110 to 1000 V
- Number of poles: 3-pole
- Net weight: Approx. 1.6 kg
- Country of origin: Germany
Downloads
Additional Information
| Device | Basic Unit |
| Type | SIMOCODE | DP | Basic | Unit |
