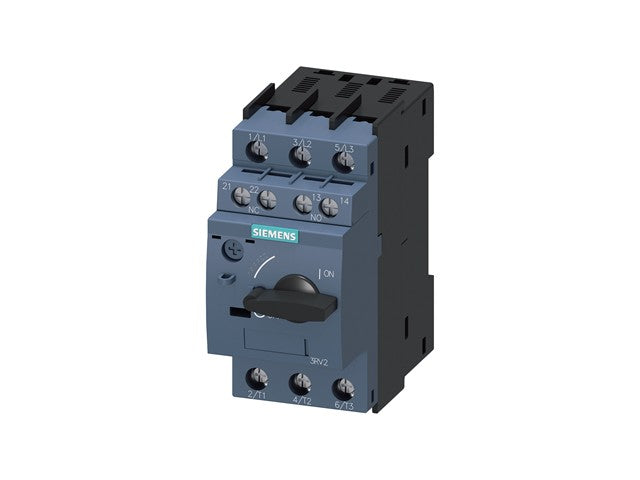

Circuit Breaker Size S00 For Motor Protection, CLASS 10 A-release 5.5...8 A N-Release 104 A Screw Terminal Standard.

Circuit Breaker Size S00 For Motor Protection

Specifications

Manufacturer: Siemens;
Part Number: 3RV2011-1HA15;
Product Family: SIRIUS 3RV2;
Module Type: Motor Protection Circuit Breaker (MPCB);
Frame Size: S00;
Number of Poles: 3-pole;
Rated Current Setting Range: 5.5–8 A;
Rated Operational Voltage: 220–690 V AC;
Rated Motor Power: Up to 3 kW @ 400 V;
Trip Class: Class 10;
Short-Circuit Release: Approx. 104 A;
Auxiliary Contacts: 1 NO + 1 NC (integrated);
Terminal Type: Screw terminals;
Mounting Type: DIN rail mounting;
Protection Rating: IP20;
Operating Temperature Range: −20 °C to +60 °C;
Dimensions (Approx.): 97 × 45 × 97 mm;
Weight (Approx.): ~0.36 kg;
Typical Application: Protection of small three-phase motors against overload and short circuit;

Device	Circuit Breaker
Type	Circuit \| Breaker \| Size \| S00 \| Motor \| Protection
