Traction contactor, AC-3e/AC-3, 80 A, 37 kW / 400 V, 3-pole, 24 V DC, 0.7-1.25* Uc, solid-state with integrated varistor, auxiliary contacts: 1 NO + 1 NC
Traction Contactor
Specifications
- Product Type: Power Contactor / Traction Contactor
- Manufacturer: Siemens

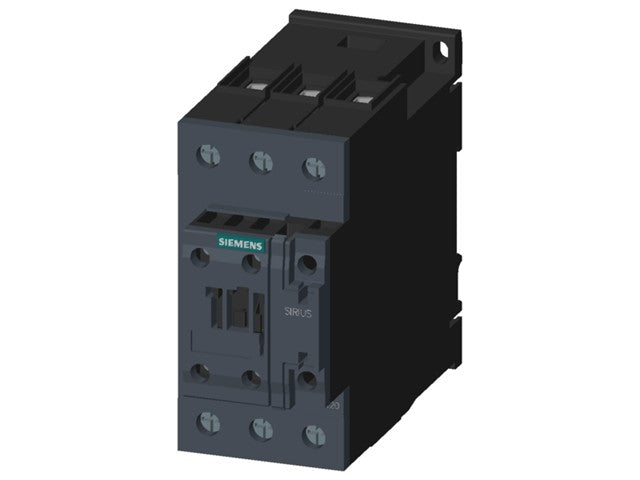

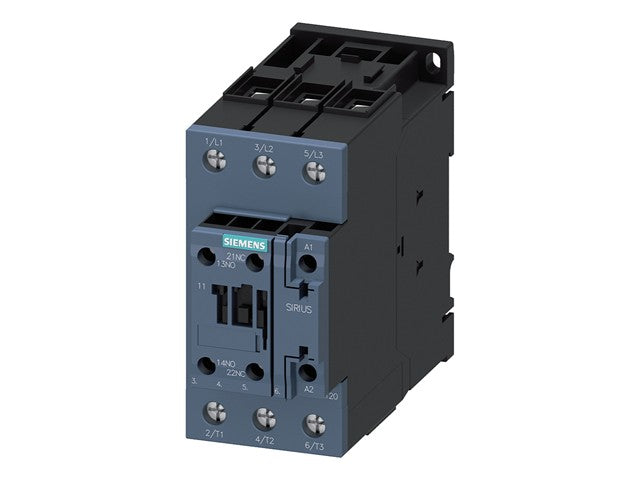

- Model: 3RT2038-1XB40-0LA2
- Poles: 3-pole
- Rated Current (AC-3): 80 A
- Power Rating: 37 kW at 400 V
- Coil Voltage: 24 V DC
- Auxiliary Contacts: 1 NO (Normally Open) + 1 NC (Normally Closed)
- Special Features: Includes an integrated varistor for overvoltage protection.
- Weight: 1.12 kg

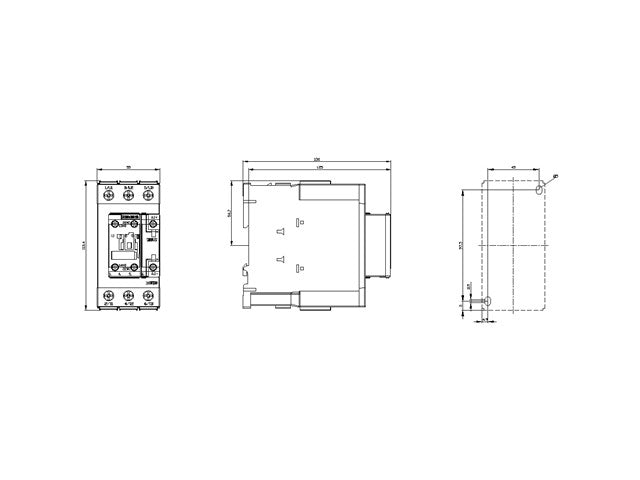

- Dimensions: 145.00 x 123.00 x 65.00 mm
Downloads
Additional Information
| Device |
Contactor |
| Type |
Traction | Contactor |
