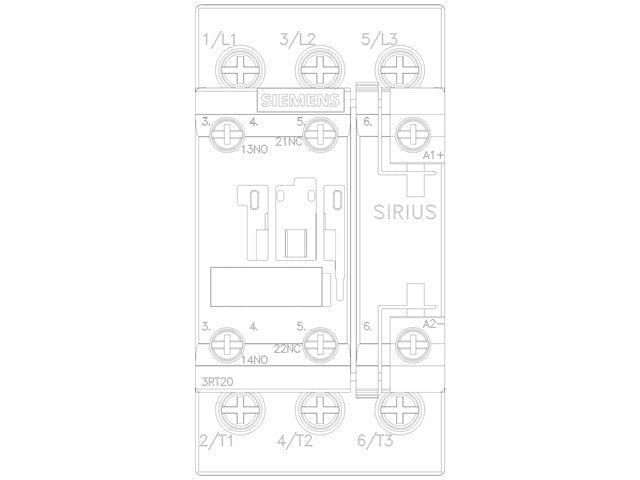

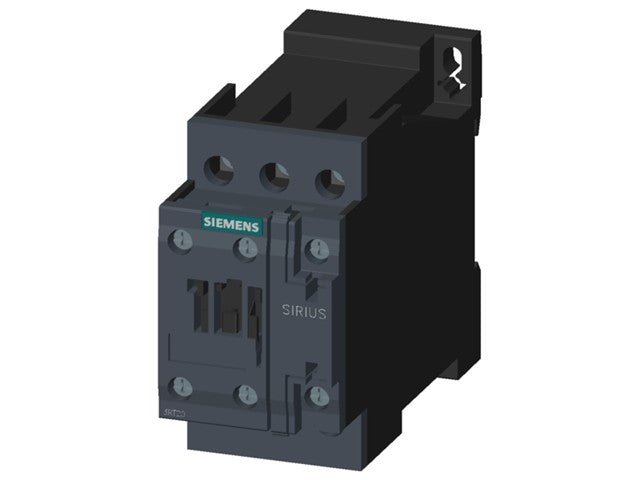

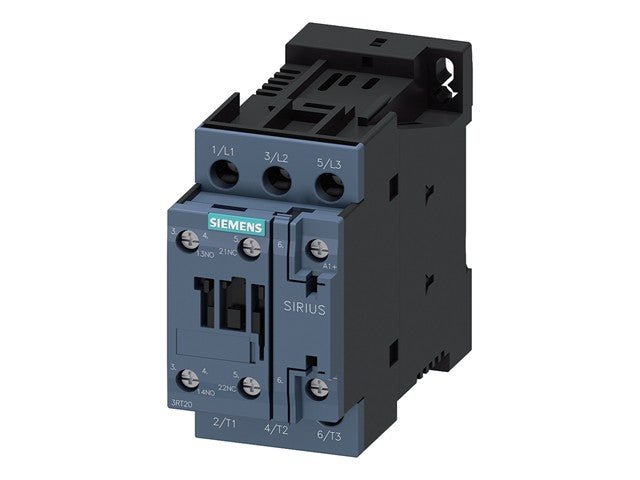

Power Contactor, AC-3 17A, 7.5 kW / 400 V 1 n/o-1 n/c, 230 V DC, 3-pole, Size S0 Screw Terminal

Power Contactor, AC-3 17A

Specifications

Manufacturer: Siemens;
Part Number: 3RT2025-1BP40;
Product Family: SIRIUS 3RT20;
Module Type: Power Contactor;
Contactor Size: S0;
Number of Poles: 3-pole;
Main Contacts: 3 NO (Normally Open);
Auxiliary Contacts: 1 NO + 1 NC (integrated);
Rated Operational Current (AC-3): 17 A;
Rated Motor Power: 7.5 kW @ 400 V AC;
Horsepower Rating: 5 HP @ 230 V; 10 HP @ 460 V; 15 HP @ 575 V;
Rated Operational Voltage: Up to 600–690 V AC;
Control (Coil) Voltage: 230 V DC;
Utilization Category: AC-3 (motor duty);
Terminal Type: Screw terminals;
Mounting Type: DIN rail or panel mounting;
Operating Temperature Range: −25 °C to +60 °C;
Insulation Voltage: 690 V;
Weight (Approx.): ~0.58–0.60 kg;
Typical Application: Motor starters, industrial automation panels, and switching of three-phase motors;
Standards Compliance: IEC 60946;
Product Lifecycle Status: Active product;

Device	Power Contactor
Type	Power \| Contactor \| AC-3 17A
