Product Details

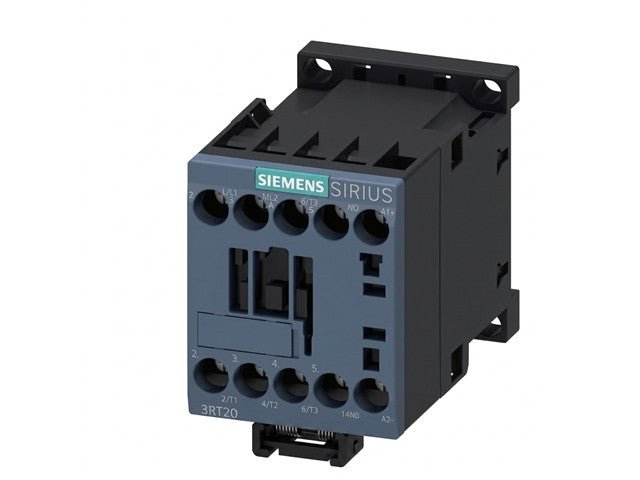

SIRUS Contactor, AC-3e/AC-3, 7 A, 3 KW / 400 V, 3-Pole, 24 V DC, Auxiliary Contacts: 1 NO, Screw Terminal, Size: S00
AC-3e/AC-3 SIRUS Contactor
Specifications
- Coil Voltage: 24 V dc
- Product Type: Contactor
- Number of Poles: 3
- Contact Voltage: 400V ac
- Contact Current: 7A
- Power Rating: 3kW
- Series: 3RT2
- Mount Type: DIN Rail
- Function: Motor Control
- Normal State Configuration: 1 NO
- Auxiliary Contact Configuration: 1 NC
- Number of Auxiliary Contacts: 1
- Terminal Type: Screw Clamp
- Operational Current Ie: 18A
- Control Circuit Voltage Uc: 24 V dc
- Minimum Operating Temperature: -25°C
- Maximum Operating Temperature: 60°C
- Length: 57.5mm
- Width: 45 mm
- Depth: 73mm
- Standards/Approvals: EAC
- Better World Product: Yes
- Better World Claim: Low Carbon Manufacture
- Pole and Throw Configuration: 3
Downloads
Additional Information
| Device | Contactor |
| Type | AC-3e/AC-3 | SIRUS | Contactor |
