Product Details

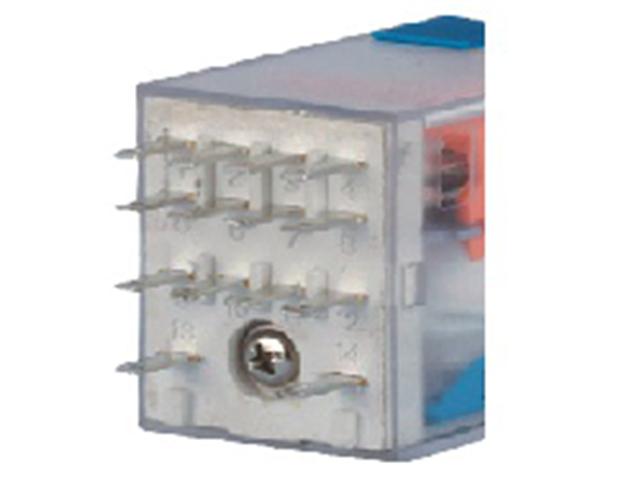

Medium Power Cradle Relay With LED & Test Clip Form 4C (4c/o) Plug-In 12VAC Coil 42 Ohm 3A 250VAC/30VDC Contacts
Medium Power Cradle Relay
Additional Information
| Device | Relay |
| Type | Medium Power | Cradle |
| Highlights | Suitable Bases: RT704-B & PMF14A-E. Lower Power Replacement for 5534 Series. Note Old model number 5704-AC12V |
| Contact Form | Form 4C (4c/o) |
| Termination | Plug-In |
| Coil Rated Voltage | 12V |
| AC/DC Voltage | AC |
| Max. Switching Current | 3A |
| Electrical Rating | 250VAC/30VDC |
| Coil Resistance | 42Ω |
