Product Details

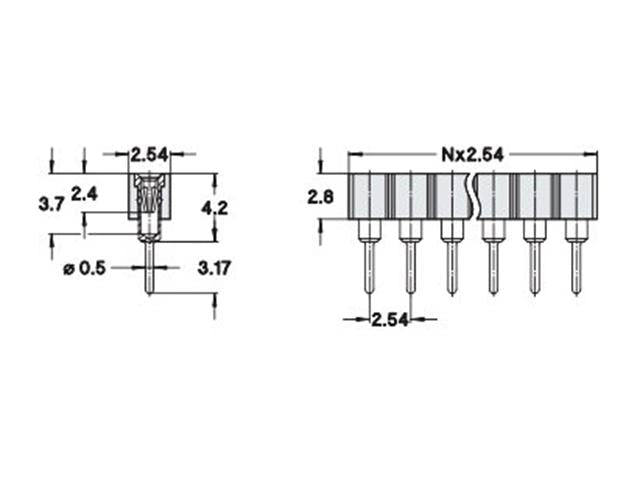

IC Socket Strip Tin/Gold Flash 64W
IC Socket Strip
Specifications
- INSULATOR : Black glass filled polyester PCT-GF30-FR
- FLAMMABILITY : UL 94V-0
- SLEEVE : Brass CuZn36Pb3 (C36000) ; Plating : Tin
- CONTACT CLIP (4 FINGER) : Beryllium copper (C17200) ; Plating : Flash Gold
- MATING PIN Ø : 0.40 to 0.56 mm
- FORCES : 2N typ. insertion 1N typ. withdrawal (polished steel gauge Ø 0.43 mm)
- MECHANICAL LIFE : Min. 500 cycles
- RATED CURRENT : 3A
- CONTACT RESISTANCE Max. 10mΩ
- DIELECTRIC STRENGTH : Min. 1’000 VRMS
Additional Information
| Device | Socket |
| Type | IC | Socket | Strip | Tin/Gold | Flash | 64W |
| Gender | Socket |
| No. of Contacts | 64 |
| No. of Pins | 64 |
| Termination | Straight Pins Solder Tail |
| Pin Plating | Tin/Gold flash |
| Size | 2.54mm |
| Row Positions | Single Row |
