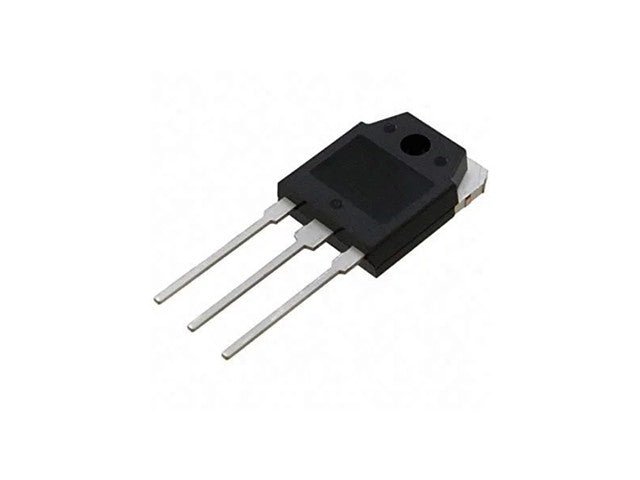

2SK1213

• Pd - Maximum Power Dissipation: 125 W
• |Vds|- Maximum Drain-Source Voltage: 600 V
• |Vgs| - Maximum Gate-Source Voltage: 20 V
• |Id| - Maximum Drain Current: 6 A
• Tj - Maximum Junction Temperature: 150 °C

Electrical Characteristics

• |VGSth| - Maximum Gate-Threshold Voltage: 3.5 V
• tr - Rise Time: 25 nS
• RDSon - Maximum Drain-Source On-State Resistance: 1.25 Ohm
• Package: TO3PN

1. Datasheet - 2SK1213
