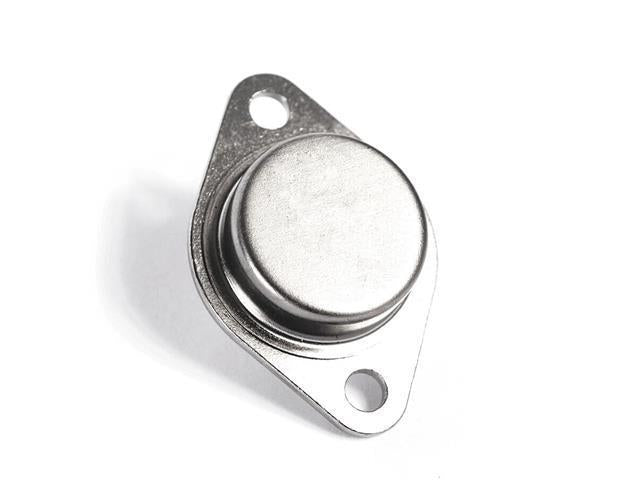

PNP 80V 80V 15A 160W TO-3 Transistor

PNP 80V 20A 150W 4MHz TO-3-2

Specifications

Mounting Style:	Through Hole
Package/Case:	TO-3-2
Transistor Polarity:	PNP
Configuration:	Single
Collector- Emitter Voltage VCEO Max:	80 V
Collector- Base Voltage VCBO:	80 V
Emitter- Base Voltage VEBO:	5 V
Collector-Emitter Saturation Voltage:	1 V
Maximum DC Collector Current:	30 A
Pd - Power Dissipation:	160 W
Gain Bandwidth Product fT:	4 MHz
Minimum Operating Temperature:	- 65 C
Maximum Operating Temperature:	+ 200 C
Packaging:	Tube
Continuous Collector Current:	15 A
DC Collector/Base Gain hFE Min:	20
DC Current Gain hFE Max:	100 at 4 A, 4 V

Device

Transistor
