Product Details

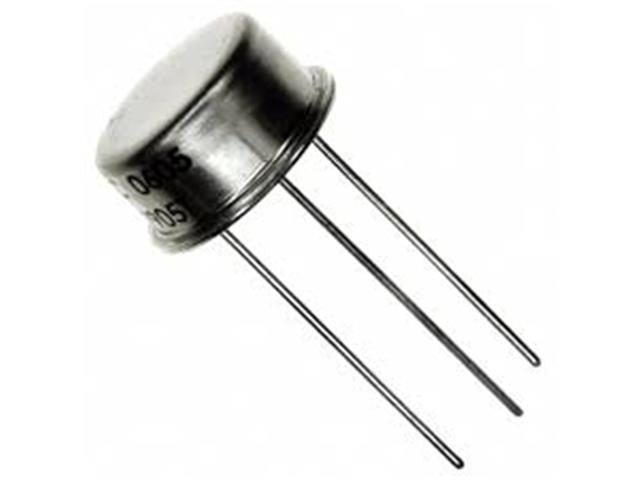

P 80V 80V 1A 100MN TO5
P 80V 80V 1A 100MN TO5
Specifications
|
Transistor Type
|
PNP |
|
Current - Collector (Ic) (Max)
|
1 A
|
|
Voltage - Collector Emitter Breakdown (Max)
|
80 V
|
|
Vce Saturation (Max) @ Ib, Ic
|
500mV @ 50mA, 500mA
|
|
Current - Collector Cutoff (Max)
|
50nA (ICBO)
|
|
DC Current Gain (hFE) (Min) @ Ic, Vce
|
100 @ 100mA, 5V
|
|
Power - Max
|
1.25 W
|
|
Frequency - Transition
|
400MHz
|
|
Operating Temperature
|
-65°C ~ 200°C (TJ)
|
|
Mounting Type
|
Through Hole
|
|
Package / Case
|
TO-205AD, TO-39-3 Metal Can
|
|
Supplier Device Package
|
TO-39
|
Downloads
Additional Information
| Device | Transistor |
