Product Details

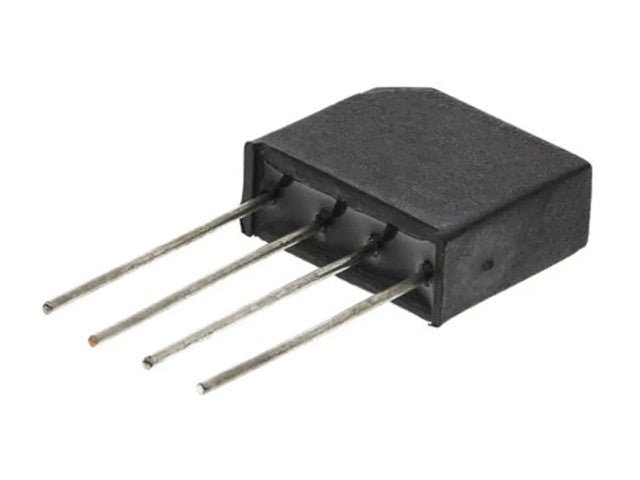

Bridge Rectifier 1,9A 1000V D-37
Specifications
| Peak Reverse Repetitive Voltage Vrrm | 1000V |
| Mount Type | Through Hole |
| Number of Phases | 1 |
| Package Type | D-37 |
| Pin Count | 4 |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Forward Current If | 1.9A |
| Peak Non-Repetitive Forward Surge Current Ifsm | 52A |
| Minimum Operating Temperature | -40°C |
| Peak Forward Voltage Vf | 1.1V |
| Height | 15mm |
| Series | VS-2KBB |
| Length | 17.5mm |
| Peak Reverse Current Ir | 10μA |
Additional Information
| Device | Bridge Rectifier |
