Product Details

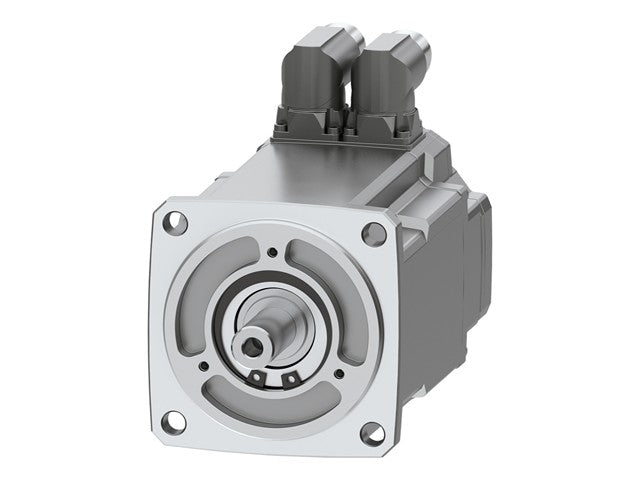

SIMOTICS S-1FK2 CT Servo Motor M0=2.4 NM; PN = 0.57 KW At NN=6000 RPM(380-480 V); PN = 0.75 KW At NN=3000 rpm (200-240 V); Degree Of Protection IP64; Cylindrical Shaft D19X40MM; Absolute Encoder Single-turn
SIMOTICS Servo Motor
Specifications
- Motor Type: Permanent-magnet synchronous motor, Natural cooling
- Series: SIMOTICS S-1FK2 CT (Compact Type)
- Static Torque (M0): 2.4 Nm
- Maximum Torque (Mmax): 7.1 Nm
- Maximum Speed (nmax): 7,500 rpm (typical)
- Encoder System: Absolute encoder single-turn 22-bit (Encoder AS22DQC)
- Shaft End: Cylindrical shaft D19×40 mm (Plain Shaft)
- Protection Class: IP64
- Connection Type: Double cable connection with DRIVE-CLiQ plug (M17 connector size) Weight 3.75 kg
Downloads
Additional Information
| Device | Motor |
| Type | SIMOTICS | S-1FK2 | CT | Servo | Motor |
