Product Details

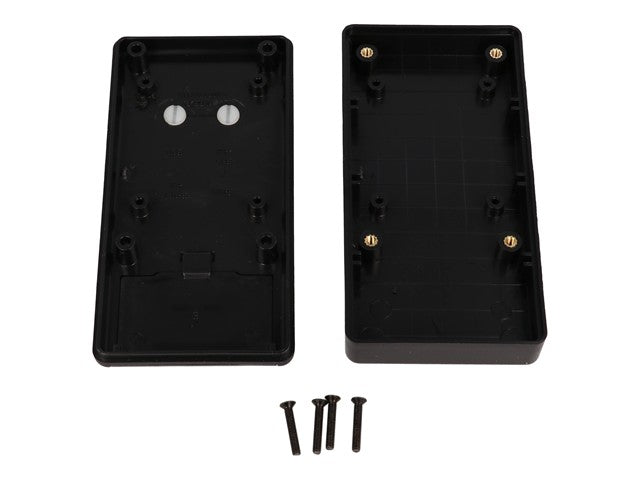

ABS Enclosure With Clip+Bat Door 130X65X25
Low Profile Type Hand Held Enclosure
Feature(s)
- Attractively styled and ergonomically designed for use as a “hand-held†instrument enclosure.
- Standard version is molded from flame retardant ABS plastic (rated UL94V-0) and is assembled with machine screws into integral brass bushings.
- Economy version is molded from economical plastic (not flame retardant) and is assembled with self-tapping screws into plastic posts.
- Recessed top for membrane display or pad.
- Lap joint construction provides protection against access of dust and splashing water.
- Extra deep top and ultra shallow base are specifically designed to enhance the aesthetics of the enclosure and provide the user with flexibility and assembly efficiency.
- Designed to meet IP54.
Specifications
| Size L x W x H | 5.12 in x 2.56 in x 0.97 in (130 mm x 65 mm x 25 mm) |
|---|---|
| Shipping Weight | 0.2 lbs (0.09 kg) |
| UNSPSC | 39121301 |
| UPC | 623980566481 |
| Packaging Type | shrink wrap |
| Material | ABS Plastic |
| Color | Black |
| Flame Rating | UL94 V-0 |
| Product Category | Enclosures |
| Type | Hand-held, battery, belt clip |
| Max. P.C. Board Length (mm) | 53 |
| Max. P.C. Board Width (mm) | 89.25 |
Downloads
Additional Information
| Device | Enclosure |
| Type | Low Profile Type | Hand Held |
