Product Details

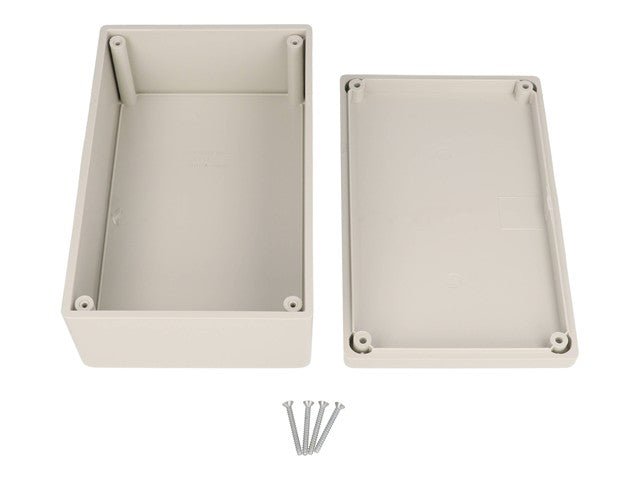

Heavy Duty Enclosure • Polystyrene Plastic 168 mm x 107 mm x 53 mm Grey
Heavy Duty Enclosure
Feature(s)
- Rugged electronic instrument enclosures, ideally suited for mounting printed circuit boards.
- Heavy duty, thick wall design with an average wall thickness of .13” (3.3 mm).
- Standard versions from flame retardant ABS plastic (carries a UL flammability rating of 94V-0).
- On standard and water-tight versions, countersunk lid is secured with four M3 x 0.5 - 0.71” (18 mm) long, Phillips machine screws threaded into integral brass bushings. Perfect for applications with repetitive assembly and disassembly required.
- Economy version is molded in general purpose ABS plastic.
- Economy version utilizes self tapping screws into plastic posts (no brass inserts).
- Standard and economy versions are rated IP54, but can be upgraded to IP66 with gaskets and screws with o-rings.
- Water-tight versions are rated IP66.
- Stocked in black and grey with matte textured finish.
Specifications
| Size L x W x H | 6.6 in x 4.2 in x 2.1 in (168 mm x 107 mm x 53 mm) |
|---|---|
| Shipping Weight | 0.56 lbs (0.25 kg) |
| UNSPSC | 39121301 |
| UPC | 623980545363 |
| Packaging Type | shrink wrap |
| Material | ABS Plastic |
| Color | Light Gray |
| Flame Rating | UL94 HB |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | Thick wall, general purpose |
Downloads
Additional Information
| Device | Enclosure |
| Type | Heavy Duty |
