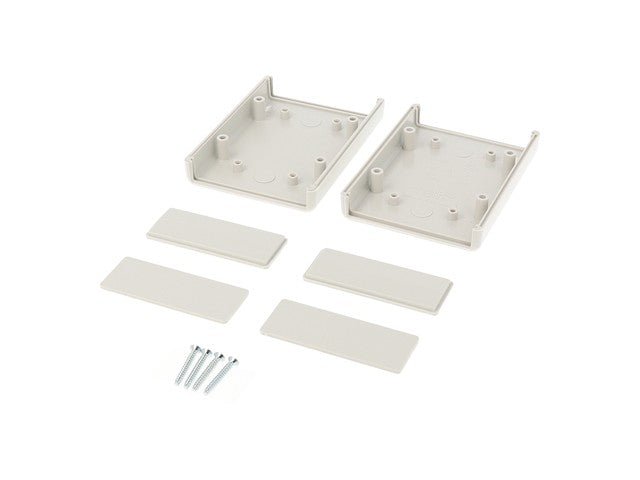

ABS Hand Held Grey Enclosure 92x66x28mm
ABS Grey Hand Held Enclosure
Feature(s)
- Electronic instrument enclosures, ideally suited for mounting printed circuit boards.
- Ergonomically designed for a comfortable fit into the user’s hand.
- Designed to meet IP54 ratings.
- Recessed top for membrane display or pad.
- Units with battery door use our long life "three snap" door.
- Lap joint construction provides protection against dust accumulation and splashing water.
- Molded in a choice of black, grey, or transparent blue general purpose ABS plastic with a satin texture.
- Unit is secured with self tapping screws.
- Black and transparent blue enclosures include black screws, grey includes nickel finish screws.
Specifications
| Size L x W x H | 3.6 in x 2.26 in x 1.1 in (91 mm x 57 mm x 28 mm) |
|---|---|
| Shipping Weight | 0.13 lbs (0.06 kg) |
| Packaging Type | shrink wrap |
| Material | ABS Plastic |
| Color | Light Gray |
| Flame Rating | UL94 HB |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | General purpose |
| Max. P.C. Board Length (mm) | 56.61 |
| Max. P.C. Board Width (mm) | 82.66 |
Downloads
Additional Information
| Device | Enclosure |
| Type | ABS | Grey | Hand Held |
