Product Details

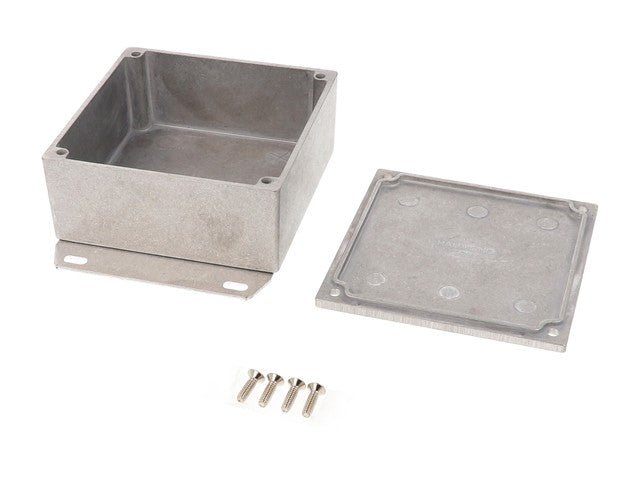

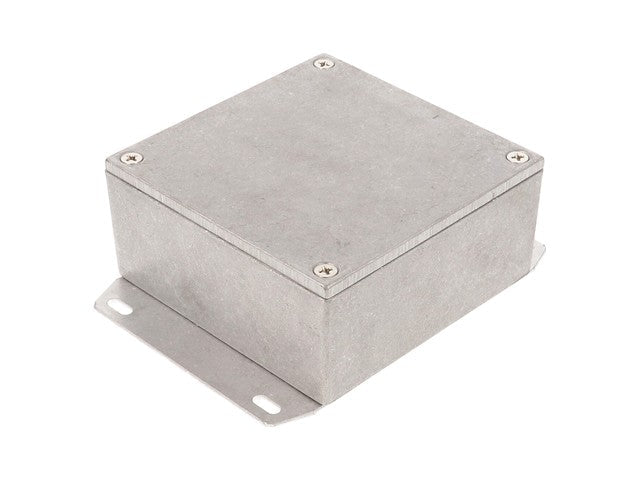

Diecast Aluminum Unpainted Enclosure 92 x 92 x 42mm Bottom Flange IP54
Diecast Aluminum Unpainted Enclosure
Feature(s)
- Rugged diecast aluminum alloy electronic instrument enclosure.
- Diecast aluminum is tough yet easy to machine.
- Lap joint construction provides protection against access of dust and splashing water. Also provides for improved EMI/RFI shielding.
- Unpainted version is vibra finished for a smooth surface with no sharp edges.
- Textured black version is coated with tough polyester powder paint for a lasting finish, even after machining. Black screws are included to enhance appearance.
- Includes screws threaded into factory-tapped holes. Screw type and quantity vary.
- Standard versions are designed to meet IP54.
- Watertight versions are designed to meet IP65 and include a gasket. Gasket is supplied loose inside the enclosure (not pre-installed).
- Low side wall draft angle (2° or less) for easy PC board mounting.
Specifications
| Size L x W x H | 3.62 in x 3.62 in x 1.65 in (92 mm x 92 mm x 42 mm) |
|---|---|
| Shipping Weight | 0.64 lbs (0.29 kg) |
| Packaging Type | shrink wrap |
| Material | Aluminum (Die-Cast Alloy) |
| Color | Natural Aluminum |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | Die-cast box, flanged |
| Max. P.C. Board Length (mm) | 84.17 |
| Max. P.C. Board Width (mm) | 84.17 |
Additional Information
| Device | Enclosure |
| Type | Diecast Aluminum | Unpainted |
