Product Details
Diecast Alum Black 121X66X39MM
Diecast Aluminium Multipurpose Enclosure
Feature(s)
- Rugged, diecast aluminum alloy (tough - yet easy to machine), electronic instrument enclosure
- Lap joint construction provides protection against access of dust and splashing water. Also provides for improved EMI/RFI shielding
- Unpainted version is vibra finished for a smooth surface with no sharp edges
- Black painted version is painted with tough polyester powder paint for a lasting finish, even after machining

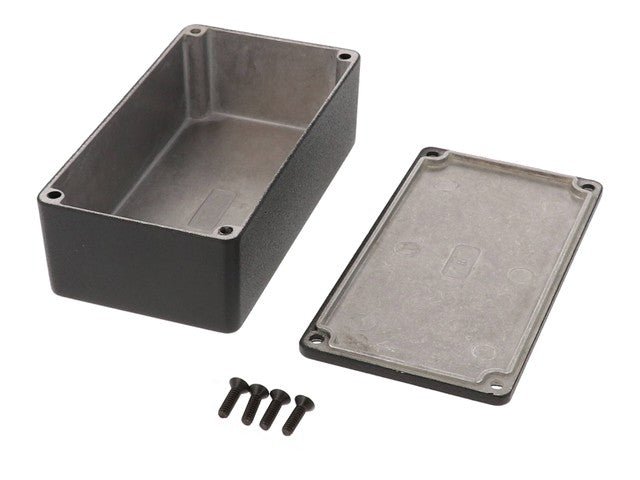

- Paint is only applied to the exterior surface to maintain RFI/EMI integrity (see photos below)
- Black screws are included to enhance appearance
- Four 6-32 x 1/2” machine screws secure lid - into factory tapped holes
- Designed to meet IP54
- Low side wall draft angle (2 degrees or less) for easy P.C. board mounting
Specifications
| Size L x W x H | 4.77 in x 2.58 in x 1.57 in (121 mm x 66 mm x 40 mm) |
|---|---|
| Shipping Weight | 0.36 lbs (0.16 kg) |
| Packaging Type | shrink wrap |
| Material | Aluminum (Die-Cast Alloy) |
| Color | Black |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | Die-cast box |
| Max. P.C. Board Length (mm) | 60.21 |
| Max. P.C. Board Width (mm) | 115.91 |
Downloads
Additional Information
| Device | Enclosure |
| Type | Diecast Aluminium | Multipurpose |
