Product Details

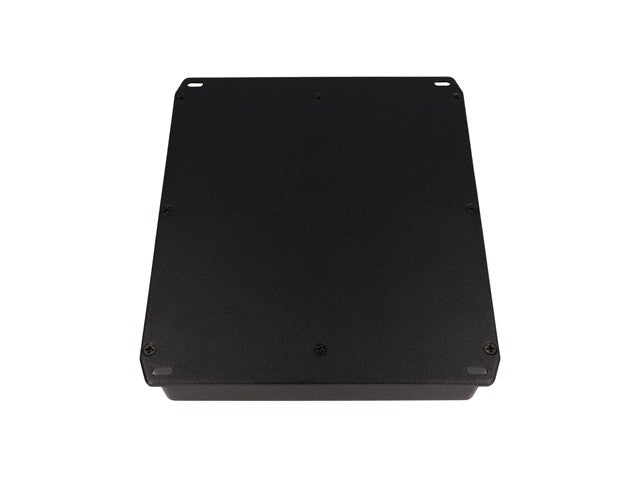

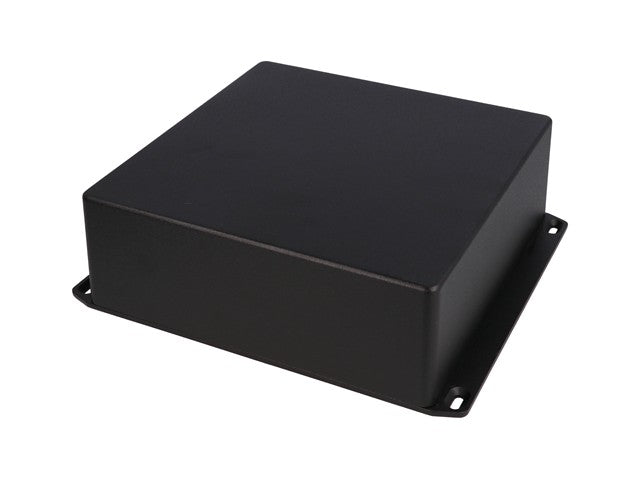

Diecast Aluminium Black Enclosure 217 x 188 x 67 mm (With Lid) Flanged Lid IP54
Diecast Aluminium Black Enclosure Flanged Lid IP54
Feature(s)
- Rugged, diecast aluminum alloy (tough - yet easy to machine), electronic instrument enclosure.
- Lap joint construction provides protection against access of dust and splashing water. Also provides for improved EMI/RFI shielding.
- Unpainted version is vibra finished for a smooth surface with no sharp edges.
- Textured black version is coated with tough polyester powder paint for a lasting finish, even after machining. Black screws are included to enhance appearance.

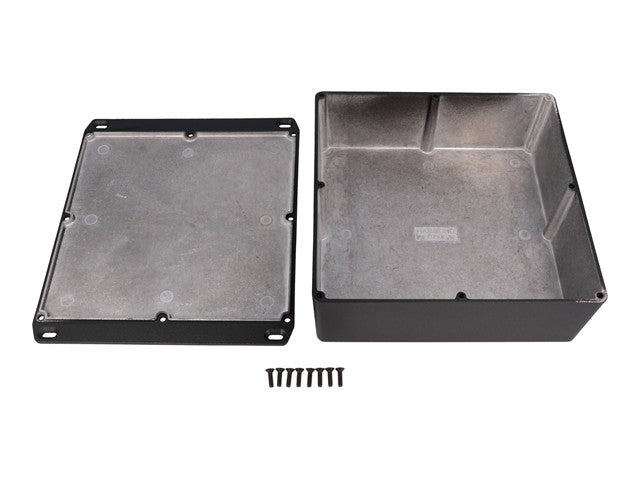

- Includes screws threaded into factory-tapped holes. Screw type and quantity vary. See details below or in drawings.
- Standard versions are designed to meet IP54.
- Water-tight versions are designed to meet IP65 and include a gasket. Gasket is supplied loose inside the enclosure (not pre-installed).
- Low side wall draft angle (2 degrees or less) for easy P.C. board mounting.
Specifications
- Product Type : Diecast Box Enclosure
- Series : 1590
- Body Material : Diecast Aluminium
- External Dimensions : 217 x 188 x 67 mm (With Lid)
- External Length : 217 mm
- External Width : 188 mm
- External Height : 67 mm (With Lid)
- Internal Dimensions : 167.44 x 178.5 x 61.51 mm
- Internal Length : 167.44 mm
- Internal Width : 178.5 mm
- Internal Height : 61.51 mm
- Colour : Black
- IP Rating : IP54
- Lid Colour : Black
- Protection Features : Dust and Splashing Water
Downloads
Additional Information
| Device | Enclosure |
| Type | Diecast | Aluminium | Black | Flanged Lid IP54 |
