Product Details
Enclosure FRABS Plastic 80 mm x 120 mm x 45 mm Light Gray IP54 Desktop/Wall Mount/IOT Indoor (Flame Retardant)
FRABS Plastic Light Gray Enclosure
Feature(s)
- Ideally suited for mounting printed circuit boards, IoT equipment, and other small electronics.

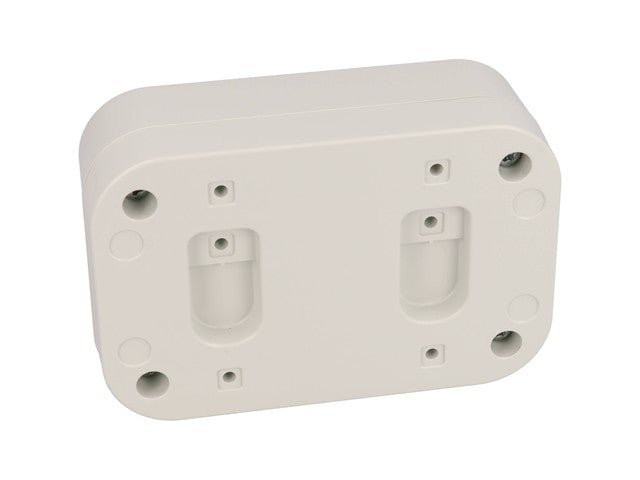

- Can be used in a tabletop configuration using rubber feet (included) or two different wall-mount configurations using wall mount foot kit (sold separately).
- Rounded corners and face provide a more modern look.
- Lap joint construction provides protection against access of dust and splashing water.
- Available in black, gray, or white flame retardant ABS plastic with light satin texture.
- Molded from flame retardant material which carries a flammability rating of UL94 V-0. For indoor use.
- Designed to meet IP54.

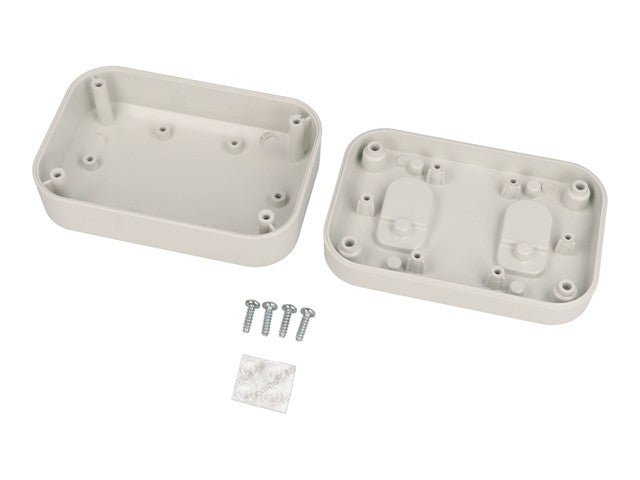

- Lid hardware and 4x rubber feet included with enclosure. Lid is secured with high strength #6 x 1/2" self-tapping Plastite screws.
- Aluminum inner panels are available as accessories. Sold separately. See table below.
Specifications
| Size L x W x H | 3.15 in x 4.72 in x 1.77 in (80 mm x 120 mm x 45 mm) |
|---|---|
| Shipping Weight | 0.22 lbs (0.10 kg) |
| UNSPSC | 39121301 |
| UPC | 623980667034 |
| Packaging Type | shrink wrap |
| Material | ABS Plastic |
| Color | Light Gray |
| Flame Rating | UL94 V-0 |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Max. P.C. Board Length (mm) | 111 |
| Max. P.C. Board Width (mm) | 71 |
Downloads
Additional Information
| Device | Enclosure |
| Type | FRABS | Plastic | Light Gray |
