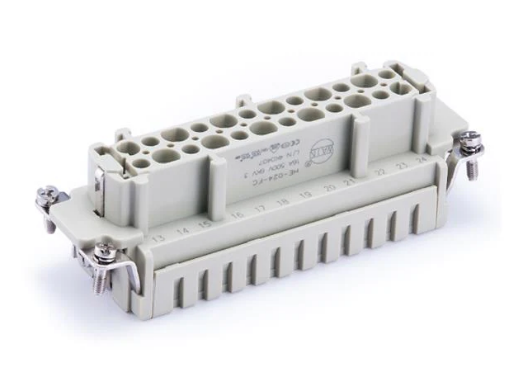

Heavy Duty Power Connector Insert - Han E Series - 24 Position Female - Crimp Termination
The Han E 24P F is a high-quality female insert designed for heavy-duty power connectivity. Featuring 24 positions plus a PE (Protective Earth) contact, this insert offers a reliable and robust solution for industrial applications. It utilizes crimp termination, providing a secure and vibration-resistant connection for wire gauges ranging from 20 AWG to 12 AWG. Rated for 16 A and 500 V, this polycarbonate insert is compatible with size 24B housings.
Please note: Crimp contacts must be ordered separately.
SPECIFICATIONS
| Inserts | |
| Number of contacts | 24+PE |
| Electrical data acc. to DIN EN 61 984 | |
| ---Rated current | 16A |
| ---Rated voltage | 500V |
| ---Rated impulse voltage | 6kV |
| ---Pollution degree | 3 |
| ---Pollution degree 2 also | 16A 400/690V 6kV 2 |
| Rated voltage acc. to UL/CSA | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤1mΩ |
| Crimp terminal | |
| ---Wrie gauge | 0.14-4.0mm² |
| ---AWG | 26-12 |
| ---Stripping length | 7.5mm |
