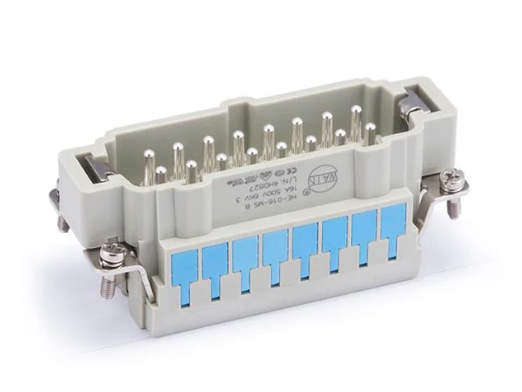

HE-016-MS B - Heavy Duty Power Connectors HAN ES 16B MALE CAGE-CLAMP TERM
HE-016-MS B - Heavy Duty Power Connectors HAN ES 16B MALE CAGE-CLAMP TERM
Regular price
Dhs. 67.00
Regular price
Sale price
Dhs. 67.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Series 16ES Insert 16P+E - Size 16B - Male Spring Termination 16A/500V
Article No. 122 016 012 0101
Industry No. 09330162616
Size: 16B
Series: 16ES
Datasheet ES HE-016-MS B
SPECIFICATIONS
| Inserts | |
| Number of contacts | 16+PE |
| Electrical data acc. to DIN EN 61 984 | |
| ---Rated current | 16A |
| ---Rated voltage | 500V |
| ---Rated impulse voltage | 6kV |
| ---Pollution degree | 3 |
| ---Pollution degree 2 also | 16A 400/690V 6kV 2 |
| Rated voltage acc. to UL/CSA | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤1mΩ |
| Spring terminal | |
| ---Wrie gauge | 0.14-2.5mm² |
| ---AWG | 26-14 |
| ---Stripping length | 7-9mm |
