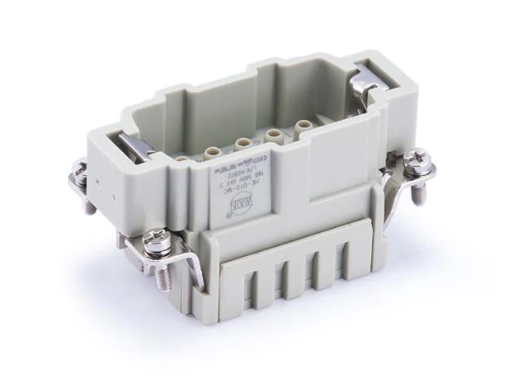

HE-010-MC - Han E 10-Pole Male Heavy Duty Power Connector
HE-010-MC - Han E 10-Pole Male Heavy Duty Power Connector
Regular price
Dhs. 28.51
Regular price
Sale price
Dhs. 28.51
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Han E 10-Pole Male Heavy Duty Power Connector with Crimp Termination
Ensure reliable power connections with the robust Han E series insert. This 10-position (plus PE) male connector features a secure crimp termination for wires ranging from 20 to 12 AWG. Rated for 16 A and 500 V, this polycarbonate insert is designed for use with size 10B housings. Contacts are ordered separately.
SPECIFICATIONS
| Inserts | |
| Number of contacts | 10+PE |
| Electrical data acc. to DIN EN 61 984 | |
| ---Rated current | 16A |
| ---Rated voltage | 500V |
| ---Rated impulse voltage | 6kV |
| ---Pollution degree | 3 |
| ---Pollution degree 2 also | 16A 400/690V 6kV 2 |
| Rated voltage acc. to UL/CSA | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤1mΩ |
| Crimp terminal | |
| ---Wrie gauge | 0.14-4.0mm² |
| ---AWG | 26-12 |
| ---Stripping length | 7.5mm |
ACCESSORIES
Please Click here to view list of Accessories for size 10B
