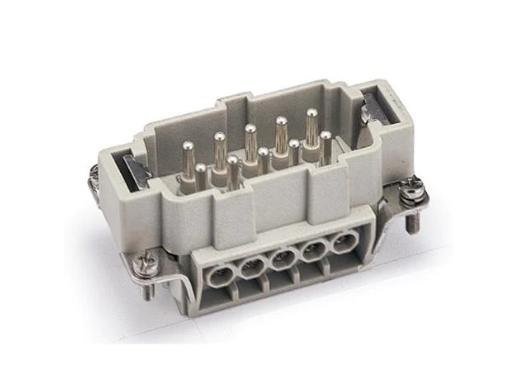

HE-010-M - Heavy Duty Power Connectors HAN E 10P M SCREW SCREW TERMINATION
HE-010-M - Heavy Duty Power Connectors HAN E 10P M SCREW SCREW TERMINATION
Regular price
Dhs. 46.09
Regular price
Sale price
Dhs. 46.09
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Unleash Reliable Power with the Heavy-Duty Han E 10P Male Power Connector
Engineered for demanding industrial applications, the Han E 10P M Screw power connector delivers robust and secure electrical connections you can depend on. Part of the renowned Han E series, this male insert features 10 power contacts plus a Protective Earth (PE) connection, making it ideal for transmitting significant power and ensuring safety.
SPECIFICATIONS
| Inserts | |
| Number of contacts | 10+PE |
| Electrical data acc. to DIN EN 61 984 | |
| ---Rated current | 16A |
| ---Rated voltage | 500V |
| ---Rated impulse voltage | 6kV |
| ---Pollution degree | 3 |
| ---Pollution degree 2 also | 16A 400/690V 6kV 2 |
| Rated voltage acc. to UL/CSA | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤1mΩ |
| Screw terminal | |
| ---Wrie gauge | 0.75-2.5mm² |
| ---AWG | 18-14 |
| ---Tightening/Test torque | 0.5Nm |
| ---Stripping length | 7.0mm |
ACCESSORIES
Please Click here to view list of Accessories for size 10B
