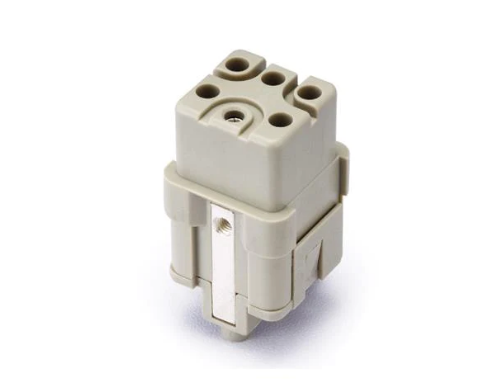

HQ-005/0-FC - Heavy Duty Power Connector - HAN Q 5P FEMALE CRMP ORDER CONTACTS
HQ-005/0-FC - Heavy Duty Power Connector - HAN Q 5P FEMALE CRMP ORDER CONTACTS
Regular price
Dhs. 32.19
Regular price
Sale price
Dhs. 32.19
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The Han Q series female insert features 12 poles and utilizes screw terminations for secure electrical connections.
With a current rating of 16 A and is suitable for voltage ratings of 230 V and 400 V. Designed to fit within a size 3A housing/hood, this female insert is constructed from durable polycarbonate (PC) material.
The Heavy Duty Power Connectors accommodates a wire gauge range of 20 AWG to 14 AWG and is part of the broader category of power connectors, specifically within the subcategory of power connectors. The unit weight of the insert is 340.200 g and it is supplied in bulk packaging under the tradename Han.
Article No. 130 005 020 0001
Industry No. 09120053101
Size: 3A
Series: Q5/0 (C)
Datasheet HQ-005/0-FC
SPECIFICATIONS
| Inserts | |
| Number of contacts | 5+PE |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 16A |
| ---Rated voltage conductor -ground | 230V |
| ---Rated voltage conductor -conductor | 400V |
| ---Rated impulse voltage | 4kV |
| ---Pollution degree | 3 |
| ---Pollution degree 2 also | 16A 320/500V 4kV 2 |
| Rated voltage acc. to UL | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-silver plated |
| hard-gold plated | |
| Contact resistance | ≤1mΩ |
| Crimp terminal | |
| ---mm2 | 0.14-2.5mm2 |
| ---AWG | 26-14 |
| PE screw terminal | |
| ---mm2 | 2.5mm2 |
| ---AWG |
14 |
ACCESSORIES
Please Click here to view list of Accessories for Size 3A
