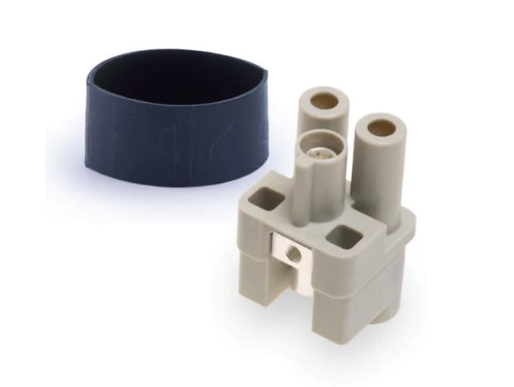

HQ-002.2-F (4-10mm2) - Heavy Duty Power Connectors FEMALE INSERT 2 POLE SCW TERM
HQ-002.2-F (4-10mm2) - Heavy Duty Power Connectors FEMALE INSERT 2 POLE SCW TERM
Couldn't load pickup availability
The Han Q series female insert is a robust component designed for heavy-duty power connector applications.
This female insert features 2 power positions plus a PE (Protective Earth) contact, accommodating a current rating of 40 A and a voltage rating of 830 V. It utilizes a reliable screw termination style for secure wiring of conductors ranging from 12 to 10 AWG.
Constructed with a durable polycarbonate (PC) housing and silver-plated copper alloy contacts, this insert ensures excellent conductivity and longevity. It is compatible with size 3A housings and is part of the Han tradename's power connector subcategory, supplied in bulk packaging with a unit weight of 19.020 g.
Article No. 130 002 021 0002
Industry No. 09120022752
Size: 3A
Series: Q2/0
Datasheet HQ-002.2-F (4-10mm2)
SPECIFICATIONS
| Inserts | |
| Number of contacts | 2+PE |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 40A |
| ---Rated voltage | 830V |
| ---Rated impulse voltage | 6kV |
| ---Pollution degree | 3 |
| Rated voltage acc. to UL | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-silver plated |
| Contact resistance | ≤1mΩ |
| Axial screw termination | |
| ---mm2 | 2.5-10mm2 |
| ---AWG | 14-8 |
| Tightening torque | 1.8Nm |
| Stripping length |
8+1mm |
ACCESSORIES
Please Click here to view list of Accessories for Size 3A
