Product Details

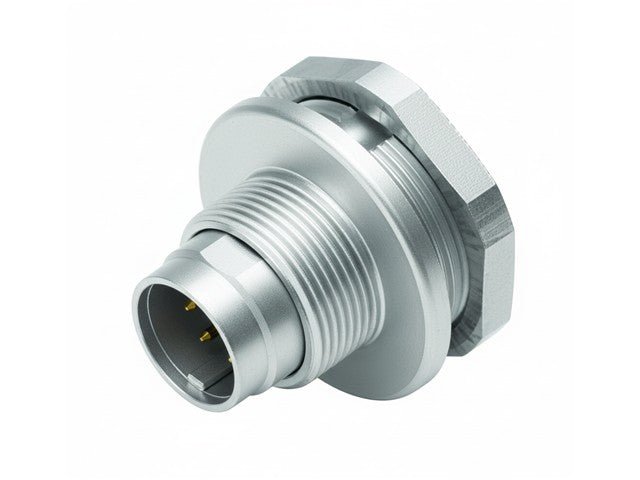

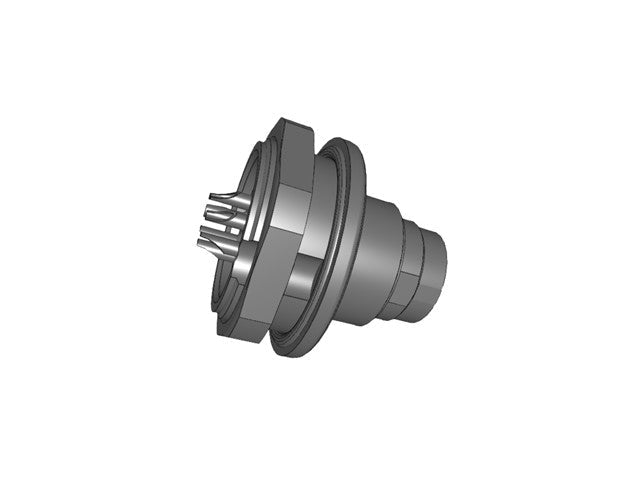

Circular Connector M9 Panel Flange Male 7 Pole Rear Mount Solder Terminal IP67
M9 Panel Flange Circular Connector
Specifications
General characteristics
| item number | 09 0423 00 07 |
| Connector design | Flange connector |
| execution | Connector pin straight |
| Connector locking | screw |
| Connection type | soldering |
| Protection class | IP67 |
| Connection cross-section | 0.14 mm² / AWG 26 |
| Limit temperature from / to | -40°C / 85°C |
| Mechanical life | > 500 mating cycles |
| Weight (g) | 5.50 |
| Country of origin | EN |
Electrical characteristics
| Rated voltage | 125V |
| Rated impulse voltage | 1500V |
| Rated current | 1.0A |
| Insulation resistance | ≥ 10 1 0 Ω |
| Degree of contamination | 1 |
| Overvoltage category | II |
| Insulating material group | III |
| EMC compatibility | unshielded |
Materials
| Housing material | CuZn (nickel-plated brass) |
| Material contact body | UL94 V-0 |
| Material Contact | CuZn (brass) |
| Contact surface | Au (gold) |
| REACH SVHC | CAS 7439-92-1 (Lead) |
| SCIP number | 8f3c6167-bcc2-42ff-ae1d-682ef8a5db55 |
Classifications
| eCl@ss 11.1 | 27-44-01-09 |
| ETIM9.0 | EC003569 |
Downloads
Additional Information
| Device | Connector |
| Type | M9 | Panel Flange | Circular |
