Product Details

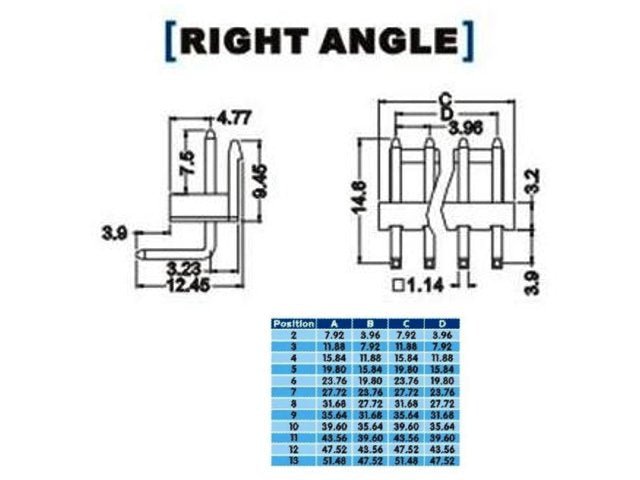

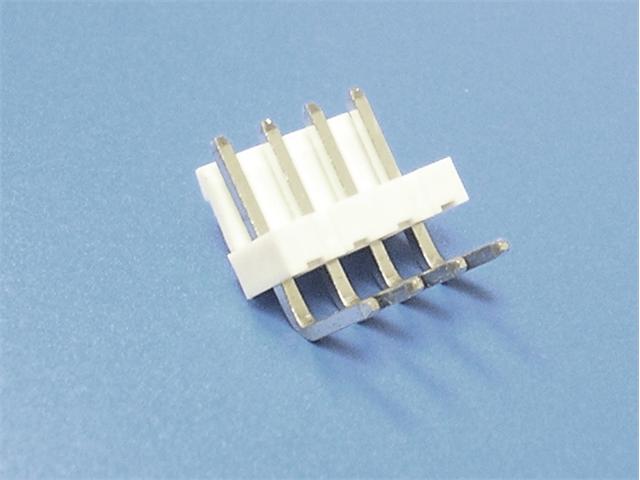

SIL Header Right Angle Type • 3.96mm • 4 way • Mates with : XY-135-04HT
Feature(s)
- 3.96mm Wire to Board Series
- Locking, Right Angle Type
- Mates with VHR-(X)-E
- Insulator Material : Nylon 66 (UL 94V-0)
- Contact Material : Brass
- Contact Plated : Tin Plated
Additional Information
| Device | SIL Header Right Angle Type |
| No. of Contacts | 4 |
| No. of Pins | 4 |
| Colour | White |
| Pin Plating | Tin Plated |
| Size | 3.96mm |
| Mating Style | Mates with : XY-135-04HT |
