Product Details

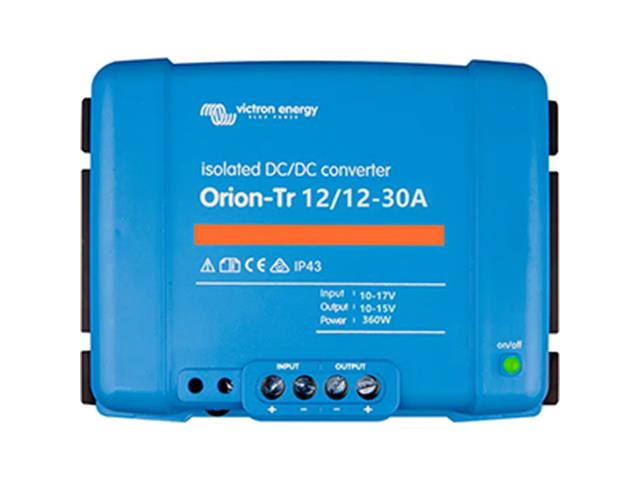

Isolated DC-DC Converter
Overview
Remote on/off terminal
The remote on/off terminal eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or by for example the engine run/stop switch
All models are short circuit proof and can be paralleled to increase output current
An unlimited number of units can be connected in parallel.
High temperature protected
The output current will reduce at high ambient temperature.
IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation.
Input fuse (not replaceable)
On 12 V and 24 V input models only.
Adjustable output voltage
Not intended for battery charging.
Please consider using an Orion-Tr Smart for battery charging.
Downloads
Additional Information
| Device | Converter |
| Type | Isolated | DC-DC |
