Product Details
Victron Battery Monitor 6.5~95VDC, Front Bezel:69x69mm, M10 Shunt 500A 50mV, VE.Direct Communication Port, Battery Capacity:1~ 9999Ah, Temperature:(0-50°C or 30-120°F) ± 1°C/°F, Measures Voltage of Second Battery or Temp/Midpoint

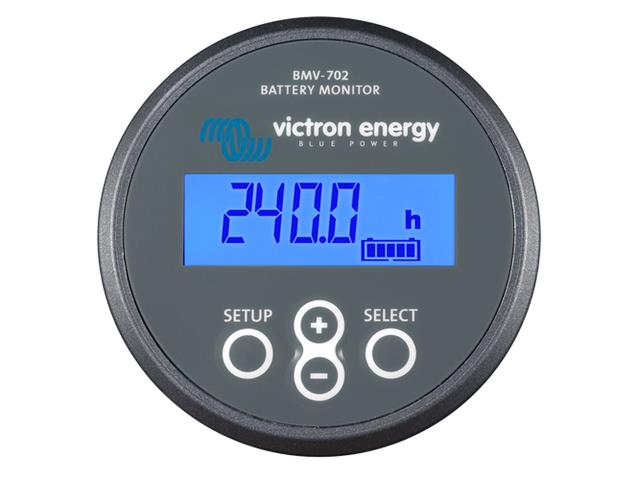

Battery Monitor 6.5~95VDC
Overview
The BMV-702 is a high precision battery monitor. The essential function of a battery monitor is to calculate ampere hours consumed and the state of charge of a battery. Ampere hours consumed are calculated by integrating the current flowing in or out of the battery.
BMV-702 Additional Features:
Additional input to measure voltage (of a second battery), temperature or midpoint voltage, and corresponding alarm and relay settings
Downloads
Additional Information
| Device | Battery Monitor |
| Type | 6.5~95VDC |
