Product Details

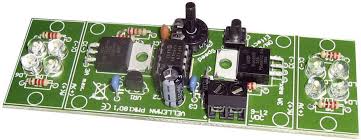

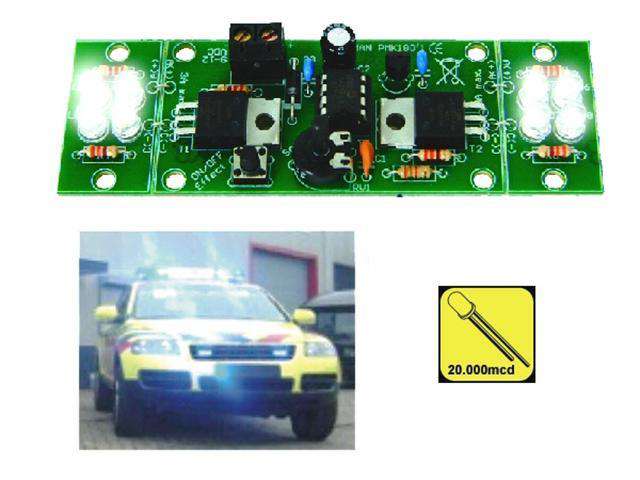

2 Channel Hi-Power LED Flasher Kit
• Function Group : Light Effects & Control
• Function Group : Light Effects & Control
Overview
Features
- Two channels
- 7 flash effects
- Adjustable speed
- Detachable LED PCBs
- High-power MOSFET outputs: (3A/channel)
- Memory for last selected effect
- Supplied with 20.000mcd white LEDs
- Single-button selection
- Applications: alarm systems, hazard flasher, attention grabber, disco effect, etc.
Specification
- Supply voltage: 12VDC
- Outputs: 3A/Channel max.
- Dimensions:
- Main board:
- l x w: 65x33mm / 2.56x1.3"
- height: 20mm / 0.78"
- LED board:
- l x w: 18x33mm / 0.71x1.3"
- 12mm / 0.47"
- Main board:
